Product Details:
Payment & Shipping Terms:
|
| Classification: | Saddles Form Filler | Size: | 13mm, 25mm, 38mm, 50mm |
|---|---|---|---|
| Material: | Ceramic | Shape: | Super Saddles |
| Softening Point: | >1400℃ | Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. |
| Application: | Improve The Wear Resistance | Color: | White Grey |
| Al2O3: | 17-23% | Type: | Raondom Packing |
| Brand Name: | Jincheng | Origin: | China |
| Firing Temperature: | 1280~1320℃ | HS Code: | 6909190000 |
| High Light: | Scrubber Tower Intalox Saddle Ring,Ceramic Intalox Saddle Ring,Saddles Form Filler |
||

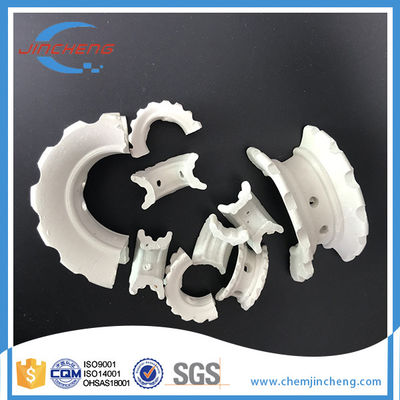

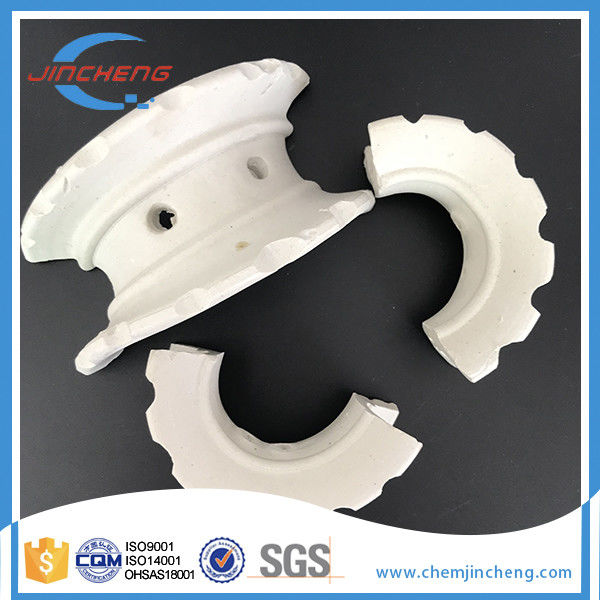

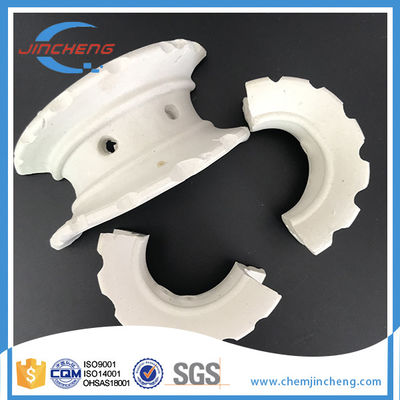

Ceramic Intalox Saddle Ring Manufacturer,Ceramic Super Intalox saddle Ring For Scrubber Tower
TYPICAL APPLICATION:
a) Have excellent acid resistance and heat resistance.
b) It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid.
c) Used in high or low temperature conditions.
d) Used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
INTRODUCE:
Ceramic Intalox Saddle is improved from the ceramic arc saddle, ceramic intalox saddle changes the both arched surface and makes the interior radius of curvature different, this construction overcomes the problem of nesting basically, Ceramic intalox saddle makes porosity distributed even and improves the distribution of the fluid, greater capacity and lower pressure drop than ceramic rasching ring.
Ceramic Intalox Saddle with excellent acid resistance and heat resistance. They can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently their application ranges are very wide. Ceramic Intalox Saddle can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc. Ceramic Saddles are used in two main fields but have different properties depending on the application. One field is the chemical and petrochemical industries and another is in environmental areas such as RTO equipment.
SPECIFICATIONS:
| Index | Unit | Value |
| Porosity | Vol% | 1 |
| Specific heat | KJ/Kg | 840-900 |
| Crush strength | N/mm 2 | 390-420 |
| Specific gravity | g/cm 3 | 2.3-2.45 |
| Acid Resistance | % | 99.98 |
| Firing temperature | Centigrade | 1280 to 1320 |
| Softening point | Centigrade | >1400 |
| Water absorption | % | <0.2 |
| Thermal Expansion | 10 -6 mm/mm Centigrade | 4.7 |
| Hardness | Mohr Scale | 7-8 |
| Comprehensive strength | Newtons | 5600 |
| Shock strength | Kgf.cm/cm 2 | 1.0-1.5 |
DESCRIPTION:
Ceramic Super Saddles are used in two main fields but have different properties depending on their application. The first field is the chemical and petrochemical industries and the second is in environmental areas such as RTO equipment. The first saddle is for chemical and petrochemical.
ADVANTAGES:
These saddles are made from chemical porcelain and have excellent resistance to acids except in the case of hydrofluoric acid.
Moisture absorption must less than half a percent.
The porcelain's specific gravity is 2.3-2.4g/cm3 and an average heat capacity (between 20Centigrade and 500Centigrade of 0.22 cal/g Centigrade.
Jincheng ceramic saddles softening point is 1400Centigrade min. And they show good thermal shock resistance during repeated cycling between 20Centigrade and 820Centigrade.
