Product Details:
Payment & Shipping Terms:
|
| Classification: | Chemical Auxiliary Agent | Color: | Light Grey |
|---|---|---|---|
| Certificate: | ISO9001:2015 | HS Code: | 3824999990 |
| CAS No.: | 1318-02-1 | Packaging: | 25kgs/Carton Box, Or 150kgs/Steel Drum |
| Shape: | Pellet | Drying Type: | Dynamic Drying |
| Size: | Beads 1.7-2.5mm, 3-5mm, Pellet 1.6mm 3.2mm | Adsorber: | Molecular Sieve |
| MF: | Na2O. Al2O3. (2.8+/-0.2)SiO2 | Place Of Origin: | Jiangxi |
| Type: | Adsorbent | Usage: | Coating Auxiliary Agents, Electronics Chemicals, Leather Auxiliary |
| High Light: | CAS 1318-02-1,10A Adsorbent Molecular Sieve,13x Apg Adsorbent Molecular Sieve |
||

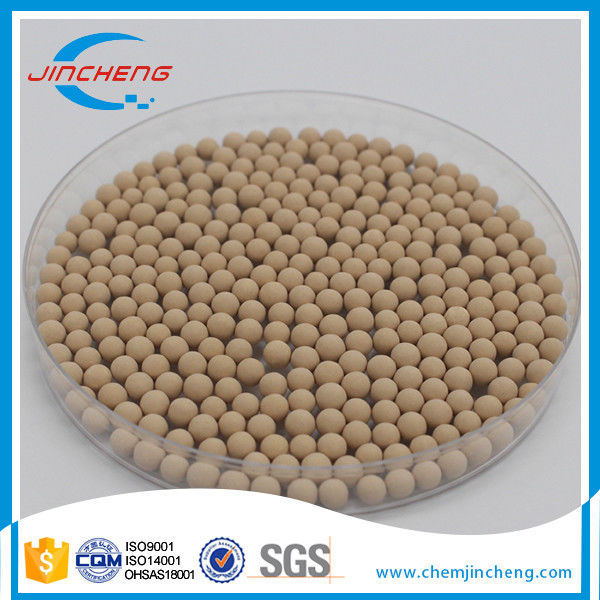

Adsorbent Molecular Sieve 13x Apg Price Desulfurization with High Selective Adsorption
TECHNICAL PARAMETER:
| Model | 13X Molecular Sieve | |||
| Nominal pore diameter | 10 angstroms | |||
| Shape | Sphere | Pellet | ||
| Diameter | 1.7-2.5 (mm) | 3.0-5.0 (mm) | 1.6 (mm) | 3.2 (mm) |
| 8*12 (mesh) | 4*8 (mesh) | 1/16 (inch) | 1/8 (inch) | |
| Bulk density (g/ml) | ≥0.64 | ≥0.64 | ≥0.61 | ≥0.61 |
| Crushing strength (N/PC) | ≥25.0 | ≥80.0 | ≥25.0 | ≥45.0 |
| Size ratio up to grade (%) | ≥98.0 | ≥98.0 | ≥95.0 | ≥95.0 |
| Static H2O adsorption (%) | ≥25.0 | ≥25.0 | ≥25.0 | ≥25.0 |
| Static CO2 adsorption (%) | ≥17.0 | ≥17.0 | ≥17.0 | ≥17.0 |
| Water content (%) | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
| Wear ratio (%) | ≤0.20 | ≤0.20 | ≤0.40 | ≤0.40 |
TYPICAL APPLICATION:
a) Deep drying of general industrial gases.
b) The purification in air separation plant ( Remove H2O and CO2 and some hydrocarbons).
c) The drying and desulphurization of natural gas, liquefied petroleum gas and liquid hydrocarbon.
d) Production of bulk oxygen in PSA units.
DESCRIPTION:
13X Molecular Sieve,is the sodium form of the type X crystal and has a much larger pore opening than the type A crystals.
It has the highest theoretical capacity of the common adsorbents and very good mass transfer rates.
It is mainly used in medicine and air compression system drying.
CHEMICAL MOLECULAR FORMULA:
Na2O·Al2O3·(2.8±0.2) SiO2·(6~7)H2O. (SiO2:Al2O3≈2.6-3.0).
WARRANTY:
By National Standard HG/T 2690-2012.
Free consultation during the warranty period.
