Product Details:
Payment & Shipping Terms:
|
| Product: | Molecular Sieve 13X APG | Color: | Yellow |
|---|---|---|---|
| Adsorber: | Molecular Sieve | Type: | Adsorbent |
| Place Of Origin: | Jiangxi Province | Size: | In Pellet 1.6mm, 3.2mm |
| High Light: | 13X HP Adsorbent Molecular Sieve,1.6mm Pellet Adsorbent Molecular Sieve,Nitrogen Separate Molecular Sieve Desiccant |
||

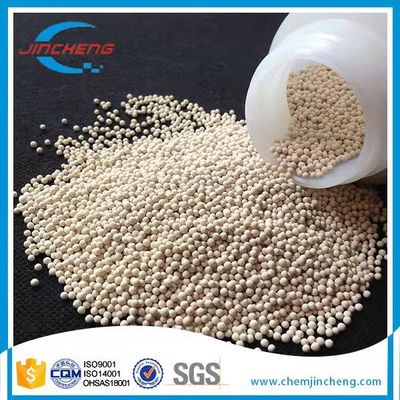

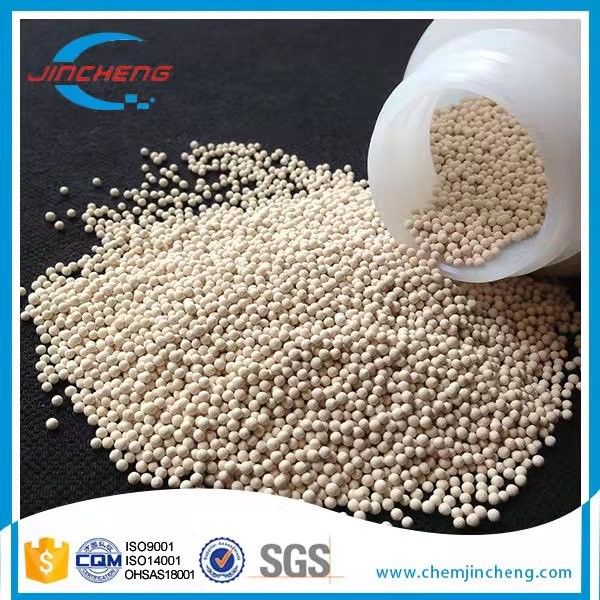

13X HP Adsorbent Molecular Sieve Nitrogen Separate Home Oxygen Concentrator
Introduction:
Type 13X APG molecular sieve is specially designed to co-absorb CO2 and H2O for air cryo-separation industry.It has larger capacity and faster adsorption speed for removal of CO2 and H2O to prevent the bed gelation, it is suitable for any cryo-separation plantsof any size and any types in the world.
Removal of H2O from air for air cryo-separation application
Typical Chemical Formula:
Na2O. Al2O3. (2.8)SiO2 . (6-7)H2O
SiO2 : Al2O3 ≈2.6-3.0
Technical Parameter
| Item | Unit | Technical data | |||
| Shape | Pellet | Sphere | |||
| Diameter | mm | 1.5-1.7 | 3.0-3.3 | 1.7-2.5 | 3.0-5.0 |
| Size ratio up to grade | % | ≥98 | ≥98 | ≥96 | ≥96 |
| Bulk density | g/ml | ≥0.62 | ≥0.61 | ≥0.64 | ≥0.64 |
| Wear ratio | % | ≤0.20 | ≤0.20 | ≤0.10 | ≤0.10 |
| Crushing strength | N | ≥30/cm | ≥70/cm | ≥50/piece | ≥70/piece |
| Static water adsorption | % | ≥27 | ≥27 | ≥27 | ≥27 |
| CO2 adsorption | NL/g | ≥18.5 | ≥18.5 | ≥18.5 | ≥18.5 |
| Water content, as shipped | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
