| HS Code: | 3926909090 | Shape: | Super Saddles |
|---|---|---|---|
| Material: | CPVC PVC PVDF PTFE | Classification: | Ring Form Filler |
| Type: | Raondom Packing | Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. |
| Size: | 25mm, 38mm, 50mm, 76mm | Standard: | ISO9001:2015 |
| High Light: | CPVC Plastic Random Packing,25mm Plastic Random Packing,PVDF Intalox Saddle Random Packing |
||

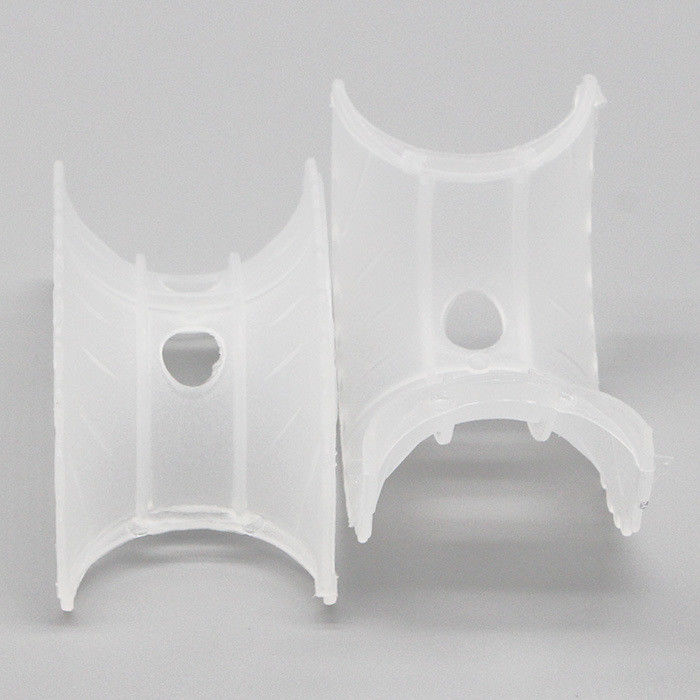

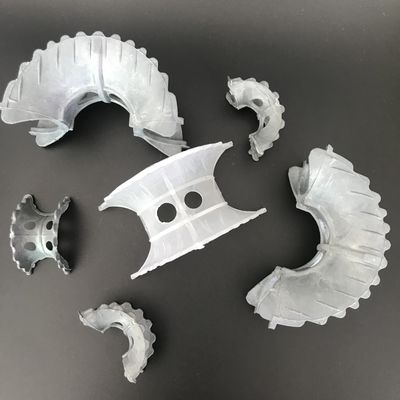

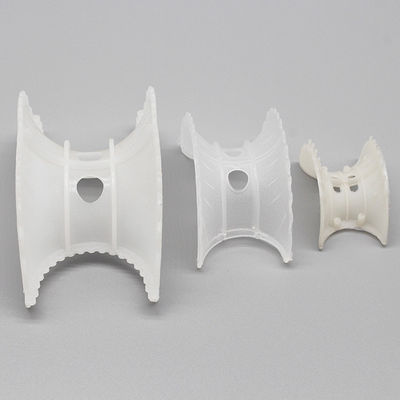

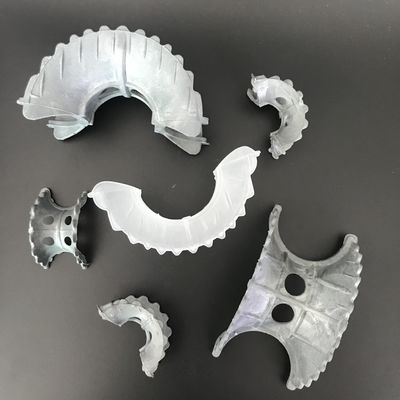

Random Tower Packing Plastic CPVC 25mm, 38mm, 50mm Super Intalox Saddles
DESCRIPTION:
1) Made of PE, PP, PVC, PVDF, CPVC
2) Plastic packing has the advantages of high void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer
3) These various plastic tower packing are widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrate.
SPECIFICATIONS:
| Specification D x H x S(mm) | Surface Area m 2 /m 3 | Free volume % | Bulk Density Kg/m 3 | Numbers Per m 3 |
| Dia.25 x 13 x 1.2 | 288 | 85 | 102 | 97680 |
| Dia.38 x 19 x 1.4 | 265 | 95 | 65 | 22500 |
| Dia.50 x 25 x 1.5 | 250 | 96 | 66 | 9400 |
| Dia.76 x 38 x 3.0 | 200 | 97 | 60 | 3700 |
APPLICATIONS:
