Product Details:
Payment & Shipping Terms:
|
| Shape: | Cascade Mini Ring CMR | Material: | Stoneware Ceramic |
|---|---|---|---|
| Application: | Improve The Wear Resistance | Size: | 25mm, 38mm, 50mm, 76mm |
| Package: | By Jumbo Bag, Each Bag 1 M3, Wooden Pallet With Wrapped. | Classification: | Ring Form Filler |
| Type: | Raondom Packing | HS Code: | 6909190000 |
| Origin: | China | ||
| High Light: | random tower packing,tower packing media |
||

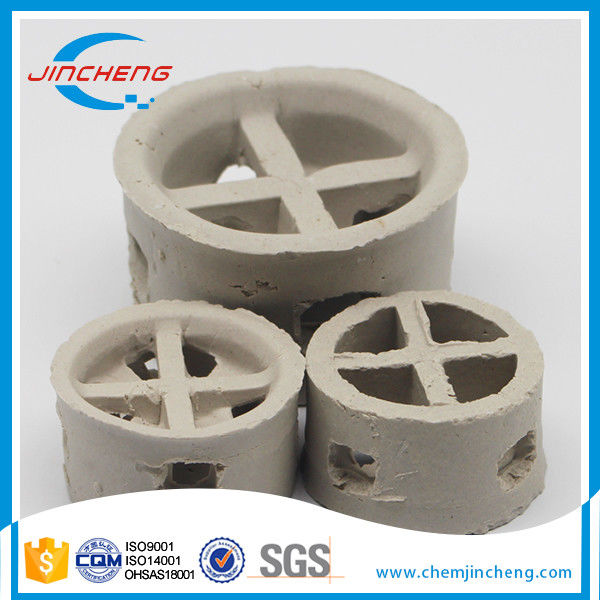

38mm Cascade Mini Ring for Random Tower Packing Stoneware Scrubbing Tower
DESCRIPTION:
Ceramic Cascade Mini Ring has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. The packing can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
TYPICAL APPLICATION:
a) Have excellent acid resistance and heat resistance.
b) It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid.
c) Used in high or low temperature conditions.
d) Used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
SPECIFICATIONS:
| Spec. | D*H*T (mm) | Surface area (m²/m³) | Free volume (%) | Number per m³ | Bulk density (Kg/m³) | Dry Packing Factor(m-1) |
| Ø 25 | 25*20*3 | 270 | 74 | 74000 | 624 | 172 |
| Ø 50 | 50*30*5 | 108.8 | 78.7 | 9091 | 516 | 223 |
| Ø 76 | 76*45*7 | 63.4 | 79.5 | 2517 | 426 | 126 |
PACKAGING:
