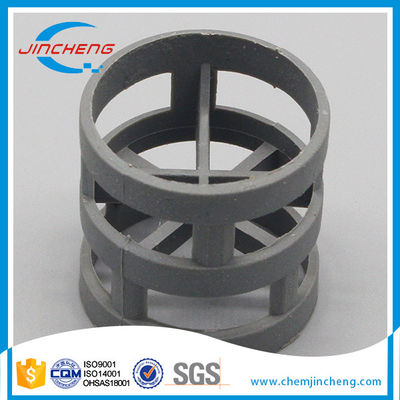

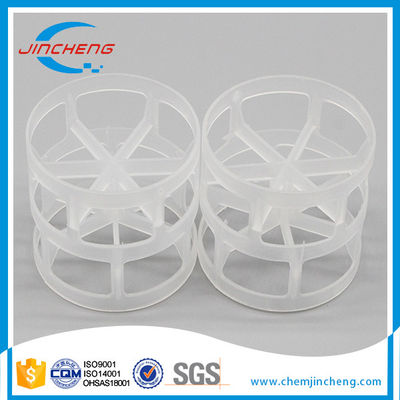

38mm PP PVC PVDF CPVC Plastic Packing Pall Ring

38mm PP PVC PVDF CPVC Plastic Packing Pall Ring
38mm PP PVC PVDF CPVC Plastic Packing Pall Ring 38mm PP PVC PVDF CPVC Plastic Packing Pall Ring

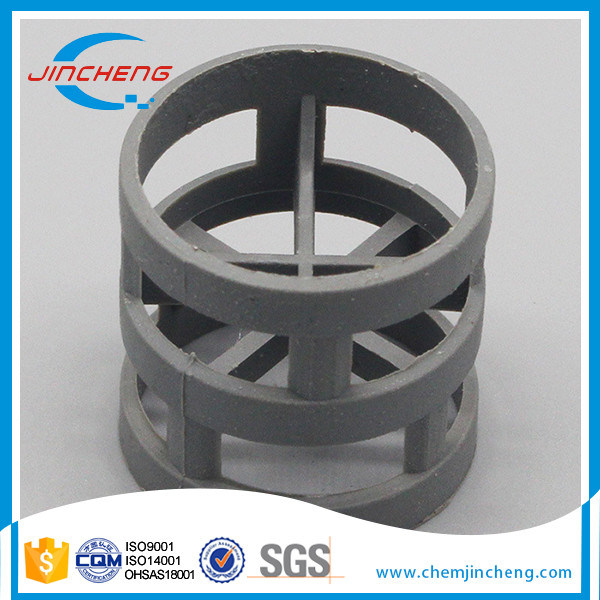

Large Image :  38mm PP PVC PVDF CPVC Plastic Packing Pall Ring

Product Details:
Place of Origin: China
Brand Name: JINCHENG
Certification: ISO9001: 2015
Model Number: 16mm, 25mm, 38mm, 50mm, 76mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 m3
Price: Negotiable
Packaging Details: By Jumbo Bag, each bag 1 m3 loading, wooden pallet with wrapped.
Delivery Time: 1-2 Weeks after order confirmation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 M3/Year
Detailed Product Description
Application: Adsorption, Scrubbing And Stripping And So On Type: Raondom Packing
Surface Area: 175 M2/m3 Size: 16mm, 25mm, 38mm, 50mm, 76mm
HS Code: 3926909090 National Standard: HG/T 21556.3-1995
Package: By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. Sample:: Free Sample
Number(per M3): 1930-171000 Free Volume: 99%
Shape: Pall Ring Classification: Ring Form Filler
Material: Plastic PP Bulk Density: 70.9-141
Color: White Plastic Pall Ring
High Light:

CPVC Plastic Packing Pall Ring

,

PVDF Plastic Packing Pall Ring

,

38mm Tower Packing Pall Ring

38mm 50mm Plastic Packing CPVC Pall Ring for Tower Packing PP PVC PVDF



DESCRIPTION:

Plastic Pall Ring, is designed based on the Plastic Raschig Ring.
It has similar cylindrical dimensions but has two rows of punched out holes.
The structure improve distribution of gas-liquid and its efficiency can be improved above 50%, and only has half of pressure drop compared with Raschig Ring.
"Packing-mall" plastic Pall Ring, is made form heat resistant and chemical corrosion resistant plastics.
It has features such as high free volume, low pressure drop, low mass-transfer unit height,
high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60℃ to 150℃.



MATERIAL:
PP, RPP, PE, PVC, CPVC, PVDF, etc.


TYPICAL APPLICATION:
Be widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.



SPECIFICATIONS:

Physical & Chemical properties
Performance/Material PE PP RPP PVC CPVC PVDF
Density (g/cm3) 0.94-0.96 0.89-0.91 0.93-0.94 1.32-1.44 1.50-1.54 1.75-1.78
Operation Temp. (Centigrade) 90 >100 >120 >60 >90 >150
Chemical corrosion resistance Good Good Good Good Good Good
Compression Strength (Mpa) >6.0 >6.5 >7.0 >6.0 >8.0 >10.0

Technical data
Spec. D*H*T (mm) Number per m 3 Bulk density (kg/m 3 ) Surface area (m 2 /m 3 ) Free volume (%) F factor (m-1)
Dg16 16*16*1.1 112000 141 188 91 249
Dg25 25*25*1.2 53500 150 175 90 239
Dg38 38*38*1.4 15800 98.0 115 89 220
Dg50 50*50*1.5 6500 74.8 112 90 154
Dg76 76*76*2.6 1930 70.9 3 92 94
Note: The above data are reference to material PP




38mm PP PVC PVDF CPVC Plastic Packing Pall Ring 0



38mm PP PVC PVDF CPVC Plastic Packing Pall Ring 1
