Product Details:
Payment & Shipping Terms:
|
| Shape: | Pall Rings | Material: | SS304 |
|---|---|---|---|
| Type: | Raondom Packing | Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. |
| Size: | 16mm, 25mm, 38mm, 50mm | HS Code: | 8419909000 |
| Classification: | Ring Form Filler | Application: | Improve The Wear Resistance |
| Highlight: | metal tower packing,tower packing media |
||

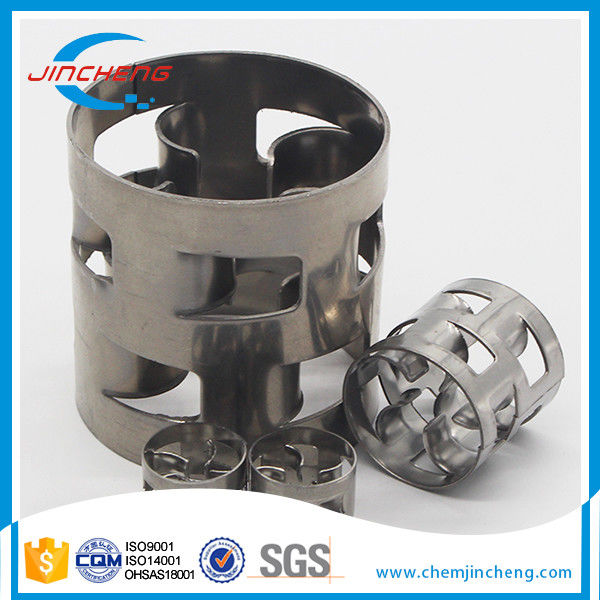

SS304 Metal Pall Ring for Adsorption Tower Filling Packing
DESCRIPTION:
Metal Pall Ring has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.
MATERIALS:
It is made of materials like carbon steel, stainless steel or Aluminum alloy, etc.
SPECIFICATIONS:
| Technical data | ||||
| Sizes (mm) | Bulk density (kg/m3) | Number (per m3) | Surface area (m2/m3) | Free volume (%) |
| 16*16*0.3 | 360 | 201000 | 346 | 95.5 |
| 25*25*0.4 | 302 | 51000 | 212 | 96.2 |
| 25*25*0.5 | 400 | 51000 | 216 | 95 |
| 25*25*0.6 | 461 | 51000 | 219 | 94.2 |
| 38*38*0.4 | 218 | 15000 | 143 | 97.2 |
| 38*38*0.5 | 262 | 15180 | 145 | 96.7 |
| 38*38*0.6 | 328 | 15000 | 146 | 95.9 |
| 50*50*0.5 | 194 | 6500 | 106 | 97.5 |
| 50*50*0.7 | 285 | 6500 | 108 | 96.4 |
| 50*50*0.9 | 365 | 6500 | 109 | 95.4 |
| 76*76*0.8 | 205 | 1830 | 69 | 97.4 |
| 90*90*1.0 | 229 | 1160 | 62 | 97.1 |
ACTURAL PACKAGING:
Contact Person: Tracy Yao
Tel: 86-18665818108
