Product Details:
Payment & Shipping Terms:
|
| Shape: | Pall Rings | Material: | Ceramic |
|---|---|---|---|
| Application: | Improve The Wear Resistance | Type: | Raondom Packing |
| Package: | By Jumbo Bag, Each Bag 1 M3, Wooden Pallet With Wrapped. | Origin: | China |
| Size: | 25mm, 50mm, 76mm | HS Code: | 6909190000 |
| Classification: | Ring Form Filler | ||
| High Light: | random tower packing,tower packing media |
||

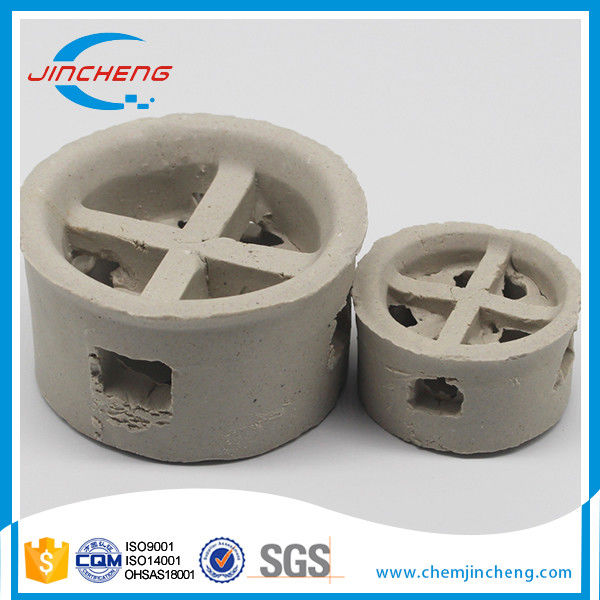

Random Packing Ceramic Cascade Mini Ring Hydrofluric Acid Cooling Towers
SPECIFICATIONS:
| Spec. | D*H*T (mm) | Surface area (m²/m³) | Free volume (%) | Number per m³ | Bulk density (Kg/m³) | Dry Packing Factor(m-1) |
| Ø 25 | 25*20*3 | 270 | 74 | 74000 | 624 | 172 |
| Ø 50 | 50*30*5 | 108.8 | 78.7 | 9091 | 516 | 223 |
| Ø 76 | 76*45*7 | 63.4 | 79.5 | 2517 | 426 | 126 |
TYPICAL APPLICATION:
a) Have excellent acid resistance and heat resistance.
b) It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid.
c) Used in high or low temperature conditions.
d) Used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
DESCRIPTION:
Ceramic Cascade Mini Ring has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. The packing can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
