| Shape: | Croos Partition Rings | Material: | Ceramic |
|---|---|---|---|
| Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. | Application: | Improve The Wear Resistance |
| HS Code: | 6909190000 | Size: | 50mm, 80mm, 100mm, 120mm, 150mm |
| Type: | Raondom Packing | Classification: | Ring Form Filler |
| Origin: | China | ||
| High Light: | random tower packing,tower packing media |
||

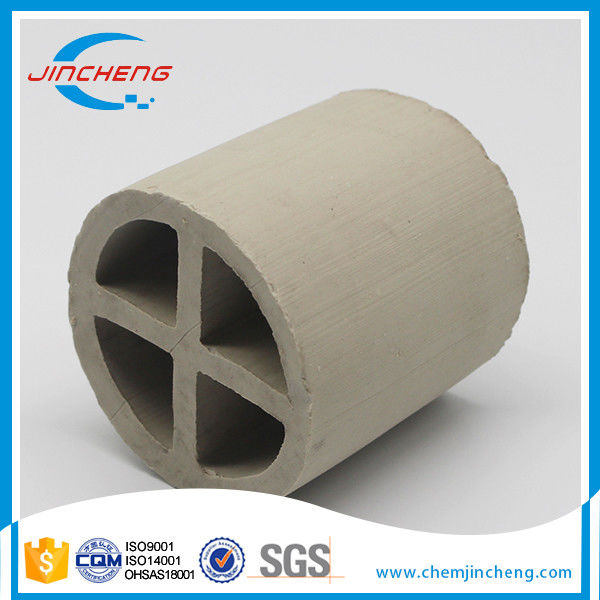

Stock! Ceramic Cross Partition Ring for RTO Random Tower Packing
DESCRIPTION:
Ceramic Cross-Partition Ring has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. The packing can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
TYPICAL APPLICATION:
a) Have excellent acid resistance and heat resistance.
b) It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid.
c) Used in high or low temperature conditions.
d) Used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
SPECIFICATIONS:
| Technical date | ||||||
| Spec. | D*H*T (mm) | Surface area (m2/m3) | Free volume (%) | Number per m3 | Bulk density (kg/m3) | Dry Packing Factor (m-1) |
| Ø 50 | 50*40*50*5 | 145 | 50 | 6,400 | 600 | 565 |
| Ø 80 | 80*64*80*8 | 120 | 56 | 1,950 | 820 | 356 |
| Ø 100 | 100*80*100*10 | 110 | 53 | 1,000 | 850 | 252 |
| Ø 120 | 120*96*120*12 | 75 | 55 | 370 | 860 | 146 |
| Ø 150 | 150*120*150*15 | 60 | 58 | 295 | 980 | 101 |
ACTURAL PACKAGING:
