| Shape: | Polyhedral Hollow Balls | Material: | Plastic PP |
|---|---|---|---|
| Application: | Improve The Wear Resistance | Type: | Raondom Packing |
| HS Code: | 3926909090 | Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. |
| Classification: | Floating Ball Filler | Size: | 25mm, 38mm, 50mm, 76mm |
| Highlight: | plastic tower packing,tower packing material |
||

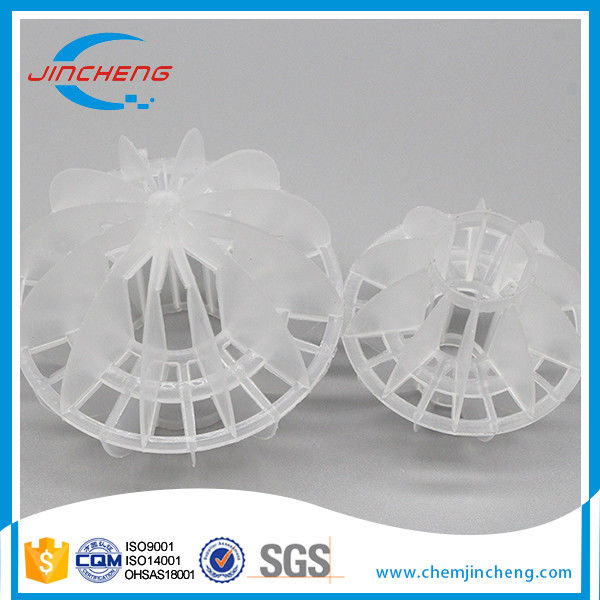

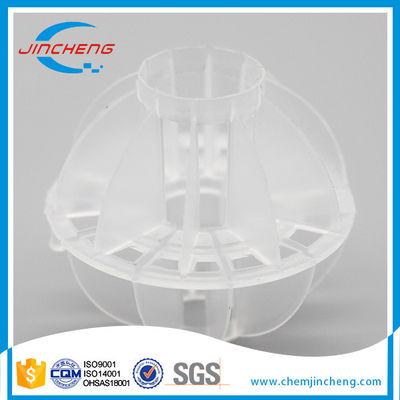

Polyhedral Hollow Ball for Tower Packing with High Acid Resistance
DESCRIPTION:
Plastic Polyhedral Hollow Ball Packing Features: 1) Made of PE, PP, PVC, PVDF, CPVC 2) Plastic packing has the advantages of high void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer 3) These various plastic tower packing are widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrate.
SPECIFICATIONS:
| Physical & Chemical properties | |||||||
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF | |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 | |
| Operation Temp. (Centigrade) | 90 | >100 | >120 | >60 | >90 | >150 | |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good | |
| Compression Strength (Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 | |
| Technical data | |||||||
| Specification (mm) | Surface area (m 2 /m 3 ) | Free volume (%) | Bulk density (kg/m 3 ) | Number per m 3 | |||
| Dia.25 | 460 | 84 | 145 | 64000 | |||
| Dia.38 | 325 | 87 | 125 | 25000 | |||
| Dia.50 | 236 | 90 | 105 | 11500 | |||
| Dia.76 | 150 | 92 | 90 | 3000 | |||
| Note: The above data are reference to material PP | |||||||
