Product Details:
Payment & Shipping Terms:
|
| Classification: | Chemical Auxiliary Agent | CAS No.: | 1318-02-1 |
|---|---|---|---|
| Color: | Light Grey | Shape: | Pellet |
| Drying Type: | Dynamic Drying | Certificate: | ISO9001:2015 |
| Packaging: | 25kgs/Carton Box, Or 150kgs/Steel Drum | HS Code: | 3824999990 |
| MF: | Na2O. Al2O3. (2.8+/-0.2)SiO2 | Place Of Origin: | Jiangxi |
| Adsorber: | Molecular Sieve | Type: | Adsorbent |
| Size: | Beads 1.7-2.5mm, 3-5mm, Pellet 1.6mm 3.2mm | Usage: | Coating Auxiliary Agents, Electronics Chemicals, Leather Auxiliary |
| High Light: | Dynamic Drying Molecular Sieve Catalyst,Air Compressed Molecular Sieve Catalyst,13X Molecular Sieve Pellet |
||

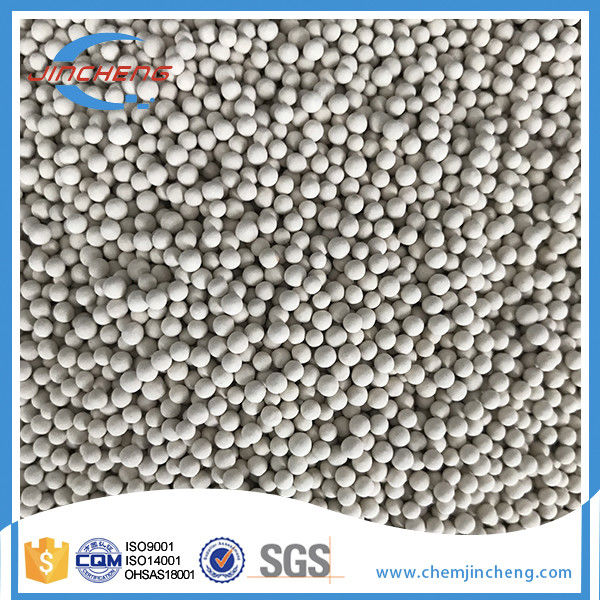

Air Compressed 13X Molecular Sieve Catalyst and Adsorbent Beads 3-5mm 1.6-2.5mm
DESCRIPTION:
13X Molecular Sieve,is the sodium form of the type X crystal and has a much larger pore opening than the type A crystals.
It has the highest theoretical capacity of the common adsorbents and very good mass transfer rates.
It is mainly used in medicine and air compression system drying.
TECHNICAL PARAMETER:
| Model | 13X Molecular Sieve | |||
| Nominal pore diameter | 10 angstroms | |||
| Shape | Sphere | Pellet | ||
| Diameter | 1.7-2.5 (mm) | 3.0-5.0 (mm) | 1.6 (mm) | 3.2 (mm) |
| 8*12 (mesh) | 4*8 (mesh) | 1/16 (inch) | 1/8 (inch) | |
| Bulk density (g/ml) | ≥0.64 | ≥0.64 | ≥0.61 | ≥0.61 |
| Crushing strength (N/PC) | ≥25.0 | ≥80.0 | ≥25.0 | ≥45.0 |
| Size ratio up to grade (%) | ≥98.0 | ≥98.0 | ≥95.0 | ≥95.0 |
| Static H2O adsorption (%) | ≥25.0 | ≥25.0 | ≥25.0 | ≥25.0 |
| Static CO2 adsorption (%) | ≥17.0 | ≥17.0 | ≥17.0 | ≥17.0 |
| Water content (%) | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
| Wear ratio (%) | ≤0.20 | ≤0.20 | ≤0.40 | ≤0.40 |
TYPICAL APPLICATION:
a) Deep drying of general industrial gases.
b) The purification in air separation plant ( Remove H2O and CO2 and some hydrocarbons).
c) The drying and desulphurization of natural gas, liquefied petroleum gas and liquid hydrocarbon.
d) Production of bulk oxygen in PSA units.
CHEMICAL MOLECULAR FORMULA:
Na2O·Al2O3·(2.8±0.2) SiO2·(6~7)H2O. (SiO2:Al2O3≈2.6-3.0).
WARRANTY:
By National Standard HG/T 2690-2012.
Free consultation during the warranty period.
