Product Details:
Payment & Shipping Terms:
|
| Shape: | Pall Rings | Material: | Stoneware Ceramic |
|---|---|---|---|
| Application: | Improve The Wear Resistance | Type: | Pall Ring Raondom Packing |
| Package: | By Jumbo Bag, Each Bag 1 M3, Wooden Pallet With Wrapped. | Origin: | China |
| Classification: | Ring Form Filler | Size: | 25mm, 38mm, 50mm, 80mm |
| HS Code: | 6909190000 | ||
| Highlight: | random tower packing,tower packing media |
||

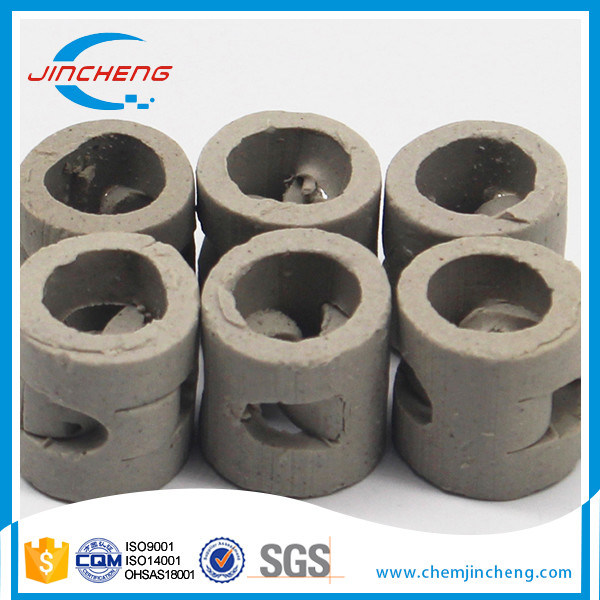

Ceramic Tower Packing Pall Ring--Tower Filling Acid Resistance Column
DESCRIPTION:
Ceramic Pall Ring has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. The packing can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
WARRANTY:
a) By National Standard HG/T 21556.3-1995.
b) Offer lifetime consultation on problems occurred.
SPECIFICATIONS:
| Sizes (mm) |
Thickness (mm) |
Surface area (m 2 /m 3 ) |
Free volume (%) |
Number per m 3 |
Bulk density (kg/m 3 ) |
| 25 | 3 | 210 | 73 | 53000 | 580 |
| 38 | 4 | 180 | 75 | 13000 | 570 |
| 50 | 5 | 130 | 78 | 6300 | 540 |
| 80 | 8 | 110 | 81 | 1900 | 530 |
ACTURAL PACKAGING:
