Product Details:
Payment & Shipping Terms:
|
| Shape: | Spheres | Material: | Alumina 99% |
|---|---|---|---|
| Type: | Rolling Type | Package: | By Double Layer Plastic Bag, Each Bag 25kgs Net. |
| Origin: | China | Size: | 6mm, 10mm, 13mm, 19mm, 25mm, 38mm, 50mm |
| HS Code: | 6909190000 | Application: | Random Tower Packing |
| Highlight: | high alumina ball,alumina grinding media |
||

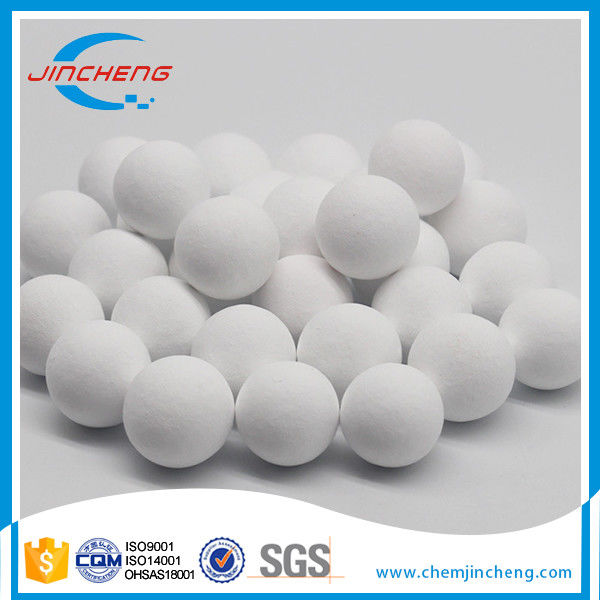

99% Al2O3 High Alumina Ball Ceramic as Catalyst Support Media 25mm
DESCRIPTION:
Jincheng Catalyst Bed Support Media 99% is equal Denstone 99 Support Media. It is in chemical composition99+% alpha alumina and a maximum 0.2wt% SiO2. Because of its high alumina content and low silica (SiO2 ), it's a very excellent and ideal product for high temperature and steam applications, such as secondary reformers in ammonia processing, where leached silica will coat downstream equipment or foul the catalyst bed.
The Jincheng 99% High Alumina Support Media has very excellent thermal properties, with its high density high-temperature resistance 1550Centigrade, also it's a good choice for heat retention or equilibration media.
For its superior chemical resistance, it's suitable for applications in olefin processes, such as ethylene dryers, where there's the polymerization problem.
PACKAGING:
By double layer plastic bag, each bag 25kg net, wooden pallet with wrapped.
SPECIFICATIONS:
| Chemical composition | ||||
| Typical Technical Composition | Min.% | Max.% | Usual% | |
| SiO2 | ******* | 0.20 | 0.18 | |
| Al2O3 | 99.00 | 99.60 | 99.30 | |
| Fe2O3 | ****** | 0.10 | 0.02 | |
| TiO2 | ****** | 0.55 | 0.02 | |
| CaO | ****** | 0.10 | 0.05 | |
| MgO | ****** | 0.10 | 0.05 | |
| Na2O | ****** | 0.10 | 0.08 | |
| K2O | ****** | 0.10 | 0.08 | |
| Physical properties | ||||
| Index | Value | Value | ||
| Leachable Iron | ≤0.01% | |||
| Apparent Porosity by Weight | ≤7.0% | |||
| Moh's Hardness Scale | >8.0 | |||
| Water Absorption | <4.0wt.% | |||
| Acid Resistance | >99.8% | |||
| Thermal Conductivity | 0.7-0.8w/m 2.k | |||
| Thermal Expansion @500 Centigrade | 0.10% | |||
| Thermal Shock Stability, 1000 Centigrade then water cooling | 10 times | |||
| Max. Operating Temperature | 1550 Centigrade | 2822 Centigrade | ||
| Specific Density | 3,700 kg/m3 | 231 lb /ft 3 | ||
| Bulk Density (Packing Density) | 2,100 kg/m3 | 131 lb /ft 3 | ||
| Crush Strength | ||||
| Size | Crush Strength | |||
| Normal Size | (lbs) | (kg) | (N/pc) | |
| mm | inch | min. | min. | min. |
| 3 | 1/8 | 115 | 52 | 510 |
| 6 | 1/4 | 230 | 105 | 1030 |
| 10 | 3/8 | 440 | 200 | 1961 |
| 13 | 1/2 | 1355 | 615 | 6031 |
| 16 | 5/8 | 1720 | 780 | 7650 |
| 19 | 3/4 | 2315 | 1050 | 10297 |
| 25 | 1 | 3130 | 1420 | 13925 |
| 38 | 1-1/2 | 4034 | 1830 | 17946 |
| 50 | 2 | 4960 | 2250 | 22065 |
ACTURAL PACKAGING:
