Product Details:
Payment & Shipping Terms:
|
| Size: | 16mm, 25mm, 38mm, 50mm, 76mm | Type: | Raondom Packing |
|---|---|---|---|
| Classification: | Ring Form Filler | Number(per M3): | 1930-171000 |
| HS Code: | 3926909090 | Application: | Adsorption, Scrubbing And Stripping And So On |
| Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. | Sample:: | Free Sample |
| Surface Area: | 175 M2/m3 | Free Volume: | 99% |
| National Standard: | HG/T 21556.3-1995 | Shape: | Pall Ring |
| Material: | Plastic PP | Bulk Density: | 70.9-141 |
| Color: | White Plastic Pall Ring | ||
| High Light: | PVC Random Packing Pall Ring,50mm Random Packing Pall Ring,PP Chemical Resistant Pall Ring |
||
Competitive Chemical Corrosion Resistant PP PVC 50mm Plastic Pall Ring
SPECIFICATIONS:
| Physical & Chemical properties | |||||||
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF | |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 | |
| Operation Temp. (Centigrade) | 90 | >100 | >120 | >60 | >90 | >150 | |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good | |
| Compression Strength (Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 | |
| Technical data | |||||||
| Spec. | D*H*T (mm) | Number per m 3 | Bulk density (kg/m 3 ) | Surface area (m 2 /m 3 ) | Free volume (%) | F factor (m-1) | |
| Dg16 | 16*16*1.1 | 112000 | 141 | 188 | 91 | 249 | |
| Dg25 | 25*25*1.2 | 53500 | 150 | 175 | 90 | 239 | |
| Dg38 | 38*38*1.4 | 15800 | 98.0 | 115 | 89 | 220 | |
| Dg50 | 50*50*1.5 | 6500 | 74.8 | 112 | 90 | 154 | |
| Dg76 | 76*76*2.6 | 1930 | 70.9 | 3 | 92 | 94 | |
| Note: The above data are reference to material PP | |||||||
DESCRIPTION:

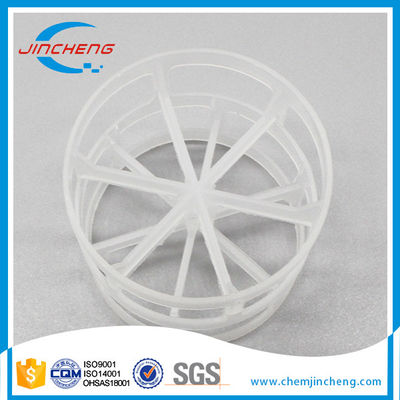

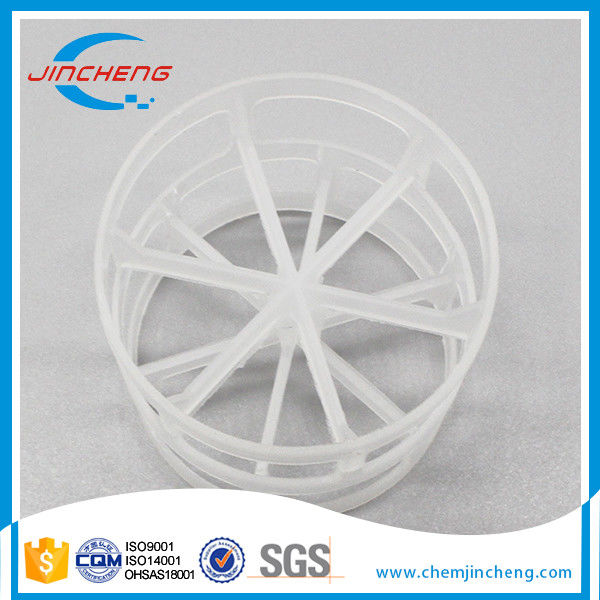

Plastic Pall Ring, is designed based on the Plastic Raschig Ring.
It has similar cylindrical dimensions but has two rows of punched out holes.
The structure improve distribution of gas-liquid and its efficiency can be improved above 50%, and only has half of pressure drop compared with Raschig Ring.
"Packing-mall" plastic Pall Ring, is made form heat resistant and chemical corrosion resistant plastics.
It has features such as high free volume, low pressure drop, low mass-transfer unit height,
high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60℃ to 150℃.
MATERIAL:
PP, RPP, PE, PVC, CPVC, PVDF, etc.
TYPICAL APPLICATION:
Be widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.
