Product Details:
Payment & Shipping Terms:
|
| Shape: | Pall Ring | Material: | Plastic PP |
|---|---|---|---|
| Type: | Raondom Packing | Application: | Improve The Wear Resistance |
| Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. | Classification: | Ring Form Filler |
| Size: | 16mm, 25mm, 38mm, 50mm, 76mm | HS Code: | 3926909090 |
| High Light: | random tower packing,tower packing material |
||

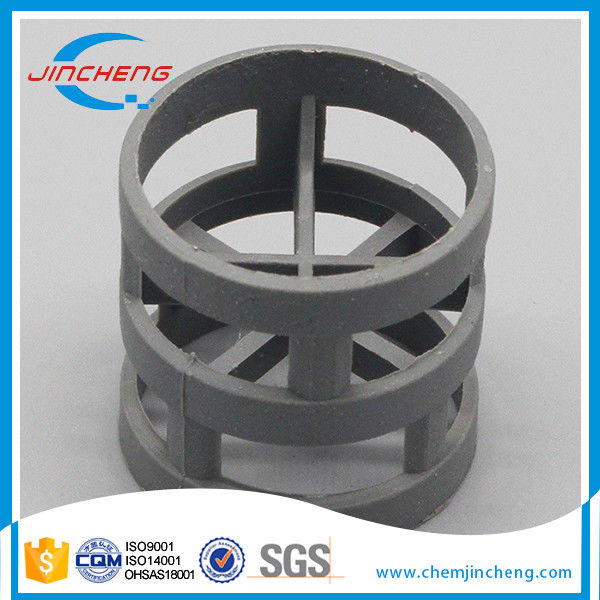

50mm Plastic Polypropylene Pall Ring for Chlorine Dioxide Plant
DESCRIPTION:
1) Made of PE, PP, PVC, PVDF, CPVC
2) Plastic packing has the advantages of high void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer
3) These various plastic tower packing are widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrate.
SPECIFICATIONS:
| Physical & Chemical properties | |||||||
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF | |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 | |
| Operation Temp. (Centigrade) | 90 | >100 | >120 | >60 | >90 | >150 | |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good | |
| Compression Strength (Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 | |
| Technical data | |||||||
| Spec. | D*H*T (mm) | Number per m 3 | Bulk density (kg/m 3 ) | Surface area (m 2 /m 3 ) | Free volume (%) | F factor (m-1) | |
| Dg16 | 16*16*1.1 | 112000 | 141 | 188 | 91 | 249 | |
| Dg25 | 25*25*1.2 | 53500 | 150 | 175 | 90 | 239 | |
| Dg38 | 38*38*1.4 | 15800 | 98.0 | 115 | 89 | 220 | |
| Dg50 | 50*50*1.5 | 6500 | 74.8 | 112 | 90 | 154 | |
| Dg76 | 76*76*2.6 | 1930 | 70.9 | 3 | 92 | 94 | |
| Note: The above data are reference to material PP | |||||||
