Product Details:
Payment & Shipping Terms:
|
| Shape: | Raschig Ring | Material: | SS304, SS316, SS410, Titanium Alloy |
|---|---|---|---|
| HS Code: | 8419909000 | Type: | Raondom Packing |
| Origin: | China | Application: | Improve The Wear Resistance |
| Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. | Size: | 15mm, 25mm, 35mm, 38mm, 50mm, 76mm |
| Classification: | Raschig Ring Filler | ||
| High Light: | Column Tower Packing Raschig Ring,SS410 Metallic Raschig Ring,SS304 Metallic Raschig Ring |
||

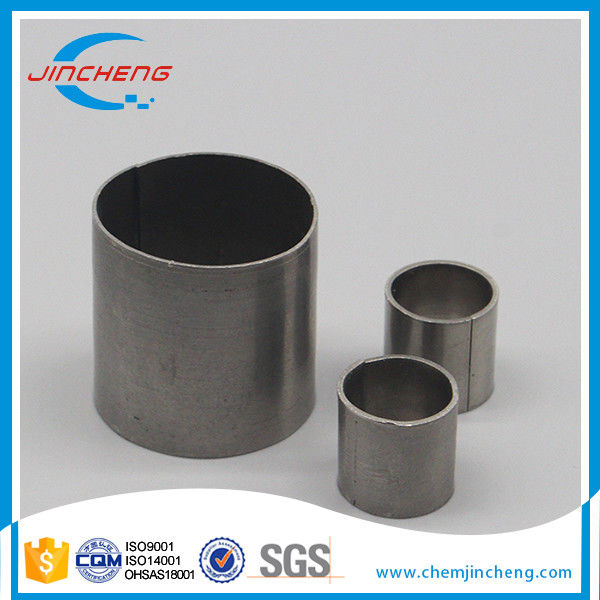

Metallic 25mm Raschig Ring as Column Tower Packing in Absorbing System
SPECIFICATIONS:
| Technical data | ||||
| Sizes (mm) | Bulk density (kg/m3) | Number (per m3) | Surface area (m2/m3) | Free volume (%) |
| 15x15x0.3 | 379 | 230000 | 350 | 95 |
| 25x25x0.4 | 318 | 51000 | 216 | 96 |
| 25x25x0.5 | 400 | 51000 | 220 | 95 |
| 35x35x0.8 | 430 | 19000 | 150 | 93 |
| 38x38x1.58 | 793 | 15000 | 136 | 94.6 |
| 50x50x0.5 | 203 | 6500 | 106 | 97.4 |
| 50x50x0.7 | 285 | 6500 | 108 | 96.4 |
| 50x50x0.8 | 325 | 7000 | 109 | 95 |
| 76x76x0.8 | 212 | 1830 | 69 | 97.3 |
| 80x80x1.2 | 300 | 1600 | 65 | 96 |
| 90x90x1.0 | 236 | 1160 | 62 | 97 |
DESCRIPTION:
Metal Raschig Ring has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.
It is made of materials like carbon steel, stainless steel or Aluminum alloy, etc.
Since 1914 when F. Raschig invented this type of ring for tower packing, random tower packings have been developed extensively. The R-ring is now used in many applications, but particularly in supporting catalyst beds.
PACKAGING:
By Jumbo Bag, each bag contain 1 m3, wooden pallet with wrapped.
ACTURAL PACKAGING:
