| Shape: | Cylinder | Material: | Ceramic |
|---|---|---|---|
| Type: | Raondom Packing | Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. |
| Size: | 6mm, 8mm, 10mm, 12mm, 16mm, 19mm, 20mm, 25mm | HS Code: | 6909190000 |
| Classification: | Ring Form Filler | Application: | Improve The Wear Resistance |
| Origin: | China | ||
| Highlight: | ceramic tower packing,tower packing media |
||

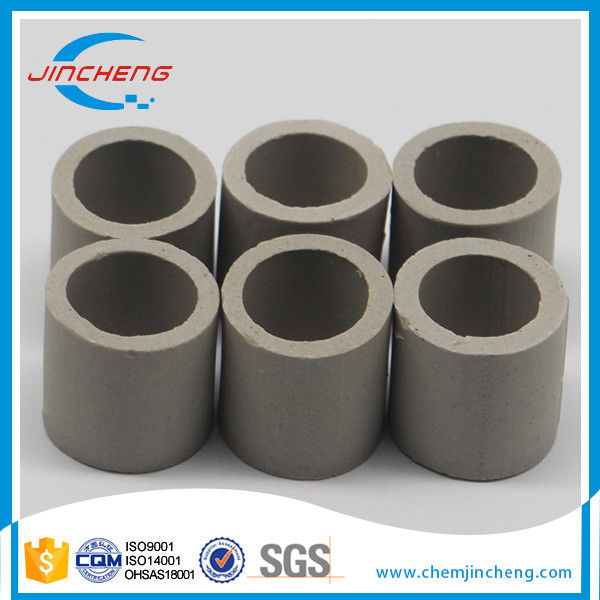

Ceramic Raschig Rings as Catalyst Support Media for Column Packing Al2O3 23%
DESCRIPTION:
Ceramic Raschig Ring has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. The packing can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
PACKING:
By jumbo bag, each bag contain 1 m3, wooden pallet with wrapped.
SPECIFICATIONS:
| Technical date | ||||||
| Spec. | D*H*T(mm) | Surface area (m 2 /m 3 ) | Free volume (%) | Number per m 3 | Bulk density (kg/m 3 ) | Dry Packing Factor (m-1) |
| Dia.6 | 6*6*2 | 789 | 73 | 3110000 | 737 | 2030 |
| Dia.10 | 10*10*2 | 440 | 70 | 720000 | 700 | 1280 |
| Dia.15 | 15*15*2 | 330 | 70 | 250000 | 690 | 960 |
| Dia.16 | 16*16*2 | 305 | 73 | 192500 | 730 | 784 |
| Dia.25 | 25*25*2.5 | 190 | 78 | 49000 | 505 | 400 |
| Dia.40 | 40*40*5 | 126 | 75 | 12700 | 577 | 305 |
| Dia.50 | 50*50*5 | 93 | 81 | 6000 | 457 | 177 |
| Dia.80 | 80*80*9.5 | 90 | 68 | 1910 | 714 | 234 |
| Dia.100 | 100*100*10 | 70 | 70 | 1000 | 700 | 172 |
| Dia.150 | 150*150*15 | 50 | 68 | 295 | 790 | 172 |
ACTURAL PACKAGING:
