| Size: | 13mm, 25mm, 38mm, 50mm | Material: | Ceramic |
|---|---|---|---|
| Type: | Random Packing | Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. |
| Brand Name: | Jincheng | Shape: | Super Saddles |
| Origin: | China | Application: | Improve The Wear Resistance |
| Firing Temperature: | 1280~1320℃ | Softening Point: | >1400℃ |
| HS Code: | 6909190000 | Classification: | Saddles Form Filler |
| Al2O3: | 17-23% | Color: | White Grey |
| High Light: | Ceramic Intalox Super Saddle Rings,Distillation Column Super Saddle Rings,Random Packing Ceramic Super Saddle |
||

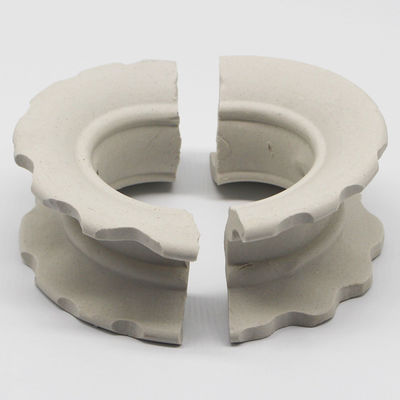

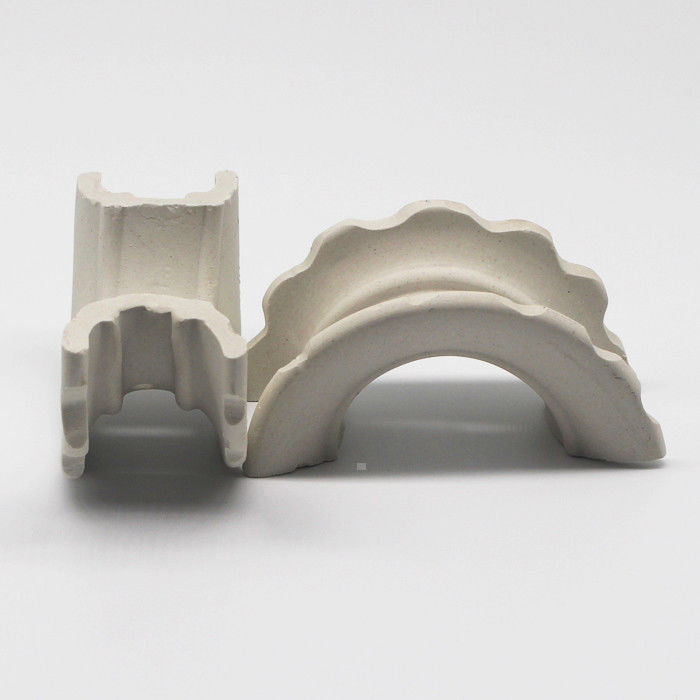

Distillation Column Ceramic Intalox Super Saddle Rings Alumina Industrial Tower Packing
Ceramic super saddle has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. It can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
| Model: | Ceramic Super Saddle | ||||||
| Shape: | Ring | ||||||
| Color: | Light Grey | ||||||
| Chemical composition | |||||||
| SiO2 | Al2O3 | Fe2O3 | CaO | K2O+Na2O | |||
| >70% | 17-23% | <1% | <1-2% | <2-4% | |||
| Physical properties | |||||||
| Index | Value | ||||||
| Specific gravity(g/cm3) | 2.25-2.35 | ||||||
| Water absorption(%) | <0.5 | ||||||
| Acid-resisting strength, %Wt. Loss (ASTMc279) | <4 | ||||||
| Firing temperature(Degree C) | 1280-1320 | ||||||
| Softening point(Degree C) | >1400 | ||||||
| Density(kg/m3) | 2350 | ||||||
| Geometric properties | |||||||
| Nominal Size | Approx. weight | Surface Area | Void Fraction (%) | Dry Packing factor (m-1) | |||
| inch | mm | lb/ft3 | kg/m3 | ft2/ft3 | m2/m3 | ||
| 1" | 25mm | 40 | 645 | 79.5 | 260 | 77 | 570 |
| 1.5" | 38mm | 37.5 | 600 | 64 | 210 | 78 | 430 |
| 2" | 50mm | 35.6 | 570 | 42.8 | 140 | 79 | 277 |
| 3" | 76mm | 36 | 580 | 32 | 105 | 77 | 206 |
| Typical Application | a)Have excellent acid resistance and heat resistance b)It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid c)Used in high or low temperature conditions d)Used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc. |
||||||
| Package : | Jumbo bag; Carton box; Wooden Case | ||||||
| Warranty: | a) By National Standard HG-T 4369-2012 | ||||||
| b) Offer lifetime consultation on problems occurred | |||||||
