Product Details:
Payment & Shipping Terms:
|
| Shape: | Cross Partition Rings | Material: | Ceramic |
|---|---|---|---|
| Application: | Improve The Wear Resistance | Size: | 50mm, 80mm, 100mm, 120mm, 150mm |
| Type: | Raondom Packing | Classification: | Ring Form Filler |
| Package: | By Jumbo Bag, Each Bag 1 M3, Wooden Pallet With Wrapped. | Origin: | China |
| HS Code: | 6909190000 | ||
| Highlight: | random tower packing,tower packing media |
||

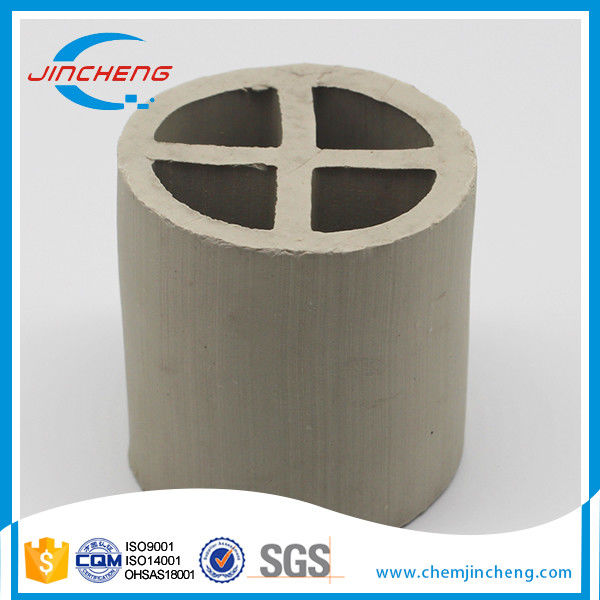

80mm Ceramic Cross-Partition Ring for Adsorption Tower Packing
DESCRIPTION:
Ceramic Cross-Partition Ring has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. The packing can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
SPECIFICATIONS:
| Technical date | ||||||
| Spec. | D*H*T (mm) | Surface area (m2/m3) | Free volume (%) | Number per m3 | Bulk density (kg/m3) | Dry Packing Factor (m-1) |
| Ø 50 | 50*40*50*5 | 145 | 50 | 6,400 | 600 | 565 |
| Ø 80 | 80*64*80*8 | 120 | 56 | 1,950 | 820 | 356 |
| Ø 100 | 100*80*100*10 | 110 | 53 | 1,000 | 850 | 252 |
| Ø 120 | 120*96*120*12 | 75 | 55 | 370 | 860 | 146 |
| Ø 150 | 150*120*150*15 | 60 | 58 | 295 | 980 | 101 |
