Product Details:
Payment & Shipping Terms:
|
| Shape: | Cylinder | Material: | Ceramic |
|---|---|---|---|
| Type: | Raondom Packing | Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. |
| Size: | 6mm, 8mm, 10mm, 12mm, 16mm, 19mm, 20mm, 25mm | HS Code: | 6909190000 |
| Classification: | Ring Form Filler | Application: | Improve The Wear Resistance |
| Origin: | China | ||
| Highlight: | ceramic tower packing,tower packing media |
||

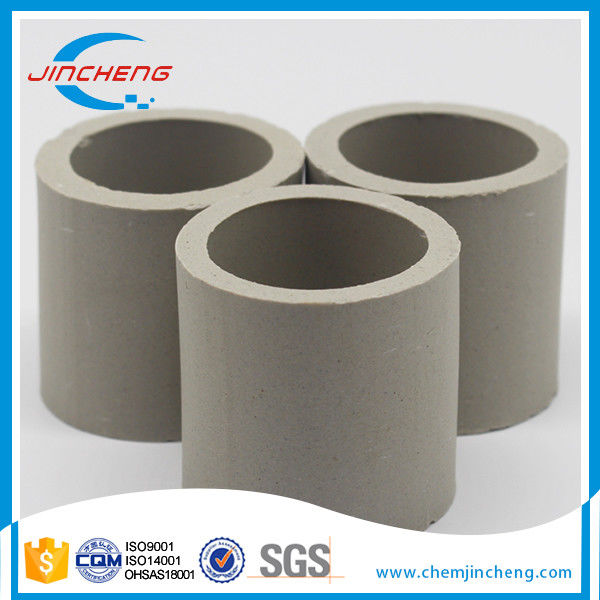

Ceramic Raschig Ring 25mm for Adsorption Tower Packing Material
DESCRIPTION:
Ceramic Raschig Ring has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. The packing can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
SPECIFICATIONS:
| Technical date | ||||||
| Spec. | D*H*T(mm) | Surface area (m 2 /m 3 ) | Free volume (%) | Number per m 3 | Bulk density (kg/m 3 ) | Dry Packing Factor (m-1) |
| Dia.6 | 6*6*2 | 789 | 73 | 3110000 | 737 | 2030 |
| Dia.10 | 10*10*2 | 440 | 70 | 720000 | 700 | 1280 |
| Dia.15 | 15*15*2 | 330 | 70 | 250000 | 690 | 960 |
| Dia.16 | 16*16*2 | 305 | 73 | 192500 | 730 | 784 |
| Dia.25 | 25*25*2.5 | 190 | 78 | 49000 | 505 | 400 |
| Dia.40 | 40*40*5 | 126 | 75 | 12700 | 577 | 305 |
| Dia.50 | 50*50*5 | 93 | 81 | 6000 | 457 | 177 |
| Dia.80 | 80*80*9.5 | 90 | 68 | 1910 | 714 | 234 |
| Dia.100 | 100*100*10 | 70 | 70 | 1000 | 700 | 172 |
| Dia.150 | 150*150*15 | 50 | 68 | 295 | 790 | 172 |
PACKING:
By jumbo bag, each bag contain 1 m3, wooden pallet with wrapped.
