Product Details:
Payment & Shipping Terms:
|
| Shape: | Plastic Polyhedral Hollow Balls | Material: | Plastic PP PE PVC CPVC |
|---|---|---|---|
| Application: | Improve The Wear Resistance | Type: | Raondom Packing |
| HS Code: | 3926909090 | Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. |
| Classification: | Floating Balls Filler | Size: | 25mm, 38mm, 50mm, 76mm |
| Highlight: | plastic tower packing,random tower packing |
||

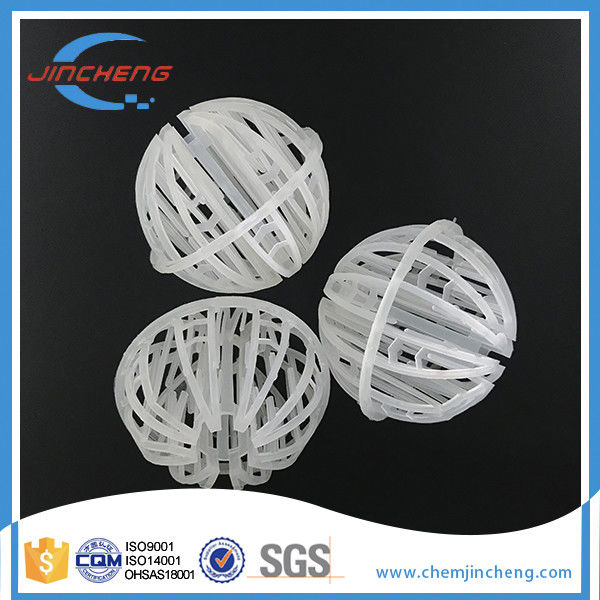

Polyhedral Hollow Ball for Tower Packing for Big Flux PP PE PVC CPVC PVDF
DESCRIPTION:
Polyhedral Hollow Ball Packing is made from heat resistant and chemical corrosion resistant plastics, including polyethylene(PE), polypropylene(PP), reinforced polypropylene(RPP), polyvinyl chloride(PVC), chloridized polyvinyl chloride(CPVC) and polyvinylidene fluoride(PVDF).
It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60 to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.
SPECIFICATIONS:
| Physical & Chemical properties | |||||||
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF | |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 | |
| Operation Temp. (Degree C) | 90 | >100 | >120 | >60 | >90 | >150 | |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good | |
| Compression Strength (Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 | |
| Technical data | |||||||
| Specification (mm) | Surface area (m 2 /m 3 ) | Free volume (%) | Bulk density (kg/m 3 ) | Number per m 3 | |||
| Dia.25 | 460 | 84 | 145 | 64000 | |||
| Dia.38 | 325 | 87 | 125 | 25000 | |||
| Dia.50 | 236 | 90 | 105 | 11500 | |||
| Dia.76 | 150 | 92 | 90 | 3000 | |||
ACTURAL PRODUCTION:
