| Shape: | Raschig Ring | Material: | SS304, SS316, SS410, Titanium Alloy |
|---|---|---|---|
| HS Code: | 8419909000 | Type: | Raondom Packing |
| Origin: | China | Application: | Improve The Wear Resistance |
| Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. | Size: | 15mm, 25mm, 35mm, 38mm, 50mm, 76mm |
| Classification: | Raschig Ring Filler | ||
| Highlight: | metal tower packing,tower packing media |
||

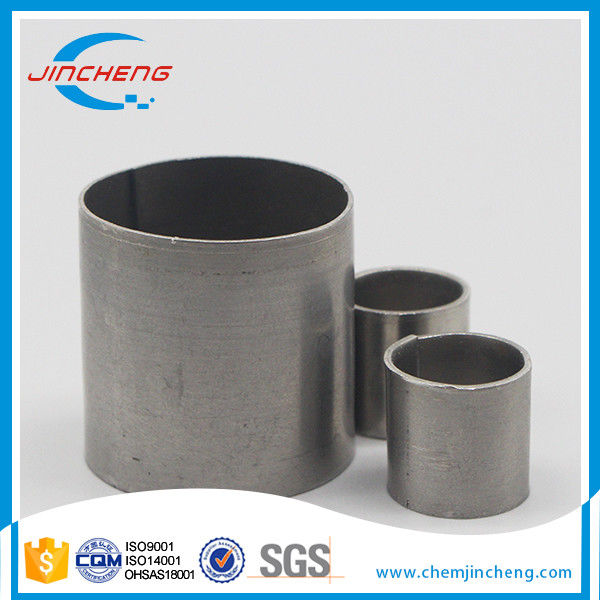

Industrial Metal Raschig Ring for Random Tower Packing 25mm 38mm 50mm
DESCRIPTION:
Metal Raschig Ring has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.
It is made of materials like carbon steel, stainless steel or Aluminum alloy, etc.
Since 1914 when F. Raschig invented this type of ring for tower packing, random tower packings have been developed extensively. The R-ring is now used in many applications, but particularly in supporting catalyst beds.
SPECIFICATIONS:
| Technical data | ||||
| Sizes (mm) | Bulk density (kg/m3) | Number (per m3) | Surface area (m2/m3) | Free volume (%) |
| 15x15x0.3 | 379 | 230000 | 350 | 95 |
| 25x25x0.4 | 318 | 51000 | 216 | 96 |
| 25x25x0.5 | 400 | 51000 | 220 | 95 |
| 35x35x0.8 | 430 | 19000 | 150 | 93 |
| 38x38x1.58 | 793 | 15000 | 136 | 94.6 |
| 50x50x0.5 | 203 | 6500 | 106 | 97.4 |
| 50x50x0.7 | 285 | 6500 | 108 | 96.4 |
| 50x50x0.8 | 325 | 7000 | 109 | 95 |
| 76x76x0.8 | 212 | 1830 | 69 | 97.3 |
| 80x80x1.2 | 300 | 1600 | 65 | 96 |
| 90x90x1.0 | 236 | 1160 | 62 | 97 |
PACKAGING:
By Jumbo Bag, each bag contain 1 m3, wooden pallet with wrapped.
