Product Details:
Payment & Shipping Terms:
|
| Al2O3: | 17-23% | Shape: | Saddles |
|---|---|---|---|
| Model Nunmber: | Intalox Saddles | Material: | Stoneware Ceramic |
| Type: | Raondom Packing | Softening Point: | >1400℃ |
| Package: | By Plastic Jumbo Bag, Each Bag 1 M3, Then Put On The Wooden Pallet With Wrapped. | Brand Name: | Jincheng |
| Classification: | Ring Form Filler | Size: | 13mm, 25mm, 38mm, 50mm |
| Origin: | China | HS Code: | 6909190000 |
| Application: | Improve The Wear Resistance | ||
| High Light: | Saddles Ceramic Tower Packing,Random Ceramic Tower Packing,Random Ceramic Saddles Ring |
||

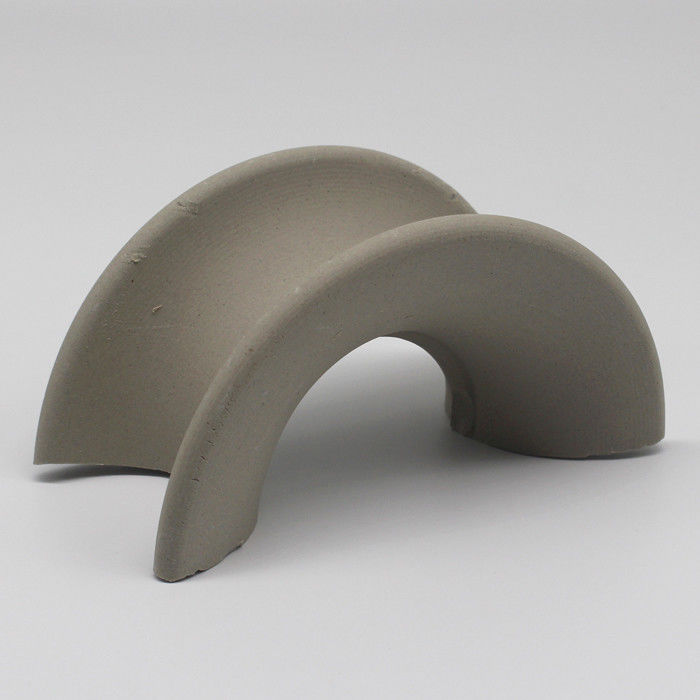

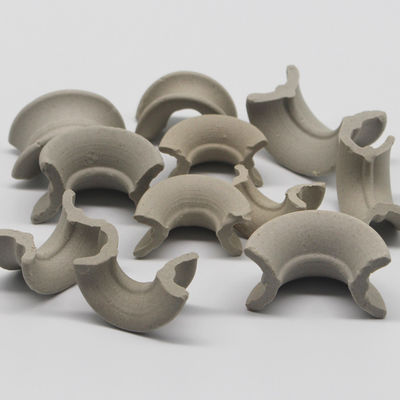

Ceramic saddles for Petrochemical Scrubbing tower Packing Support Media
ADVANTAGES:
These saddles are made from chemical porcelain and have excellent resistance to acids except in the case of hydrofluoric acid.
Moisture absorption must less than half a percent.
The porcelain's specific gravity is 2.3-2.4g/cm3 and an average heat capacity (between 20Centigrade and 500Centigrade of 0.22 cal/g Centigrade.
TYPICAL APPLICATION:
a) Have excellent acid resistance and heat resistance.
b) It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid.
c) Used in high or low temperature conditions.
d) Used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
DESCRIPTION:
Ceramic Saddles are used in two main fields but have different properties depending on their application. The first field is the chemical and petrochemical industries and the second is in environmental areas such as RTO equipment. The first saddle is for chemical and petrochemical.
SPECIFICATIONS:
| Nominal size(inch) | 3/8" | 1/2" | 5/8'" | 3/4" | 1" | 1-1/2" | 2" | 3" |
| Width(mm) | 8 | 10 | 12 | 14 | 21 | 30 | 40 | 57 |
| Height(mm) | 8 | 10 | 12 | 14 | 19 | 30 | 40 | 57 |
| Length(mm) | 16 | 20 | 24 | 28 | 38 | 60 | 80 | 114 |
| Thickness(mm) | 2 | 2.5 | 2.5 | 3 | 4 | 4.5 | 5.5 | 9 |
| Number per m 3 | 1560000 | 610000 | 269000 | 146000 | 59000 | 19680 | 8243 | 2400 |
| Package density (kg/m 3 ) | 900 | 780 | 700 | 670 | 650 | 580 | 550 | 530 |
| Free volume (%) | 63 | 68 | 71 | 75 | 77 | 80 | 79 | 75 |
| Surface area (m 2 /m 3 ) | 825 | 647 | 535 | 350 | 254 | 180 | 120 | 91 |
| Specific gravity (g/cm 3 ) | 2.25~2.35 | |||||||
| Water absorption (%) | <0.3 | |||||||
| Acid resistance (%) | >99.6 | |||||||
| Max operating temp. | 1100Centigrade | |||||||
| Porosity (%) | <1 | |||||||
| Moh'shardness (scale) | >6.5 | |||||||
| Thermal conductivity(w/m.k) | 0.9-1.0 | |||||||
| Specific heat (j/kg Centigrade) | 850-900 | |||||||
Jincheng ceramic saddles softening point is 1400Centigrade min. And they show good thermal shock resistance during repeated cycling between 20Centigrade and 820Centigrade.
