Product Details:
Payment & Shipping Terms:
|
| Shape: | Polyhedral Hollow Balls | Origin: | China |
|---|---|---|---|
| Material: | Plastic PP | HS Code: | 3926909090 |
| Application: | Improve The Wear Resistance | Type: | Raondom Packing |
| Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. | Classification: | Floating Ball Filler |
| Size: | 25mm, 38mm, 50mm, 76mm | ||
| High Light: | plastic tower packing,random tower packing |
||

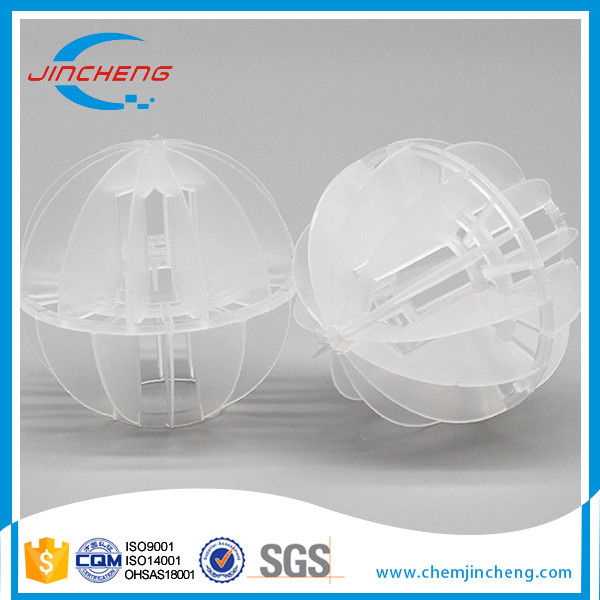

Professional Manufacrurer of Polyhedral Hollow Ball Packing 25mm 38mm 50mm
DESCRIPTION:
Plastic Polyhedral Hollow Ball Packing Features:
1) Made of PE, PP, PVC, PVDF, CPVC.
2) Plastic packing has the advantages of high void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer.
3) These various plastic tower packing are widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrate.
WARRANTY:
a) By National Standard HG/T 21556.3-1995
b) Offer lifetime consultation on problems occurred.
SPECIFICATIONS:
| Physical & Chemical properties | |||||||
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF | |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 | |
| Operation Temp. (Centigrade) | 90 | >100 | >120 | >60 | >90 | >150 | |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good | |
| Compression Strength (Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 | |
| Technical data | |||||||
| Specification (mm) | Surface area (m 2 /m 3 ) | Free volume (%) | Bulk density (kg/m 3 ) | Number per m 3 | |||
| Dia.25 | 460 | 84 | 145 | 64000 | |||
| Dia.38 | 325 | 87 | 125 | 25000 | |||
| Dia.50 | 236 | 90 | 105 | 11500 | |||
| Dia.76 | 150 | 92 | 90 | 3000 | |||
| Note: The above data are reference to material PP | |||||||
PACKAGING:
By Jumbo Bags, each bag contain 1 cbm, put on the wooden pallet with wrapped.
