Product Details:
Payment & Shipping Terms:
|
| Shape: | Plastic Ring | Material: | Plastic PP PE PVC CPVC PVDF |
|---|---|---|---|
| Application: | Improve The Wear Resistance | Type: | Raondom Packing |
| HS Code: | 3926909090 | Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. |
| Classification: | Ring Form Filler | Size: | 25mm, 38mm, 50mm, 76mm |
| Origin: | China | ||
| High Light: | plastic tower packing,random tower packing |
||
Random Tower Packing Media PP PE PVC CPVC PVDF Saddles Super Saddles
PLASTIC PALL RINGS:
SPECIFICATIONS:
| Physical & Chemical properties | |||||||
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF | |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 | |
| Operation Temp. (Centigrade) | 90 | >100 | >120 | >60 | >90 | >150 | |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good | |
| Compression Strength (Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 | |
| Technical data | |||||||
| Spec. | D*H*T (mm) | Number per m 3 | Bulk density (kg/m 3 ) | Surface area (m 2 /m 3 ) | Free volume (%) | F factor (m-1) | |
| Dg16 | 16*16*1.1 | 112000 | 141 | 188 | 91 | 249 | |
| Dg25 | 25*25*1.2 | 53500 | 150 | 175 | 90 | 239 | |
| Dg38 | 38*38*1.4 | 15800 | 98.0 | 115 | 89 | 220 | |
| Dg50 | 50*50*1.5 | 6500 | 74.8 | 112 | 90 | 154 | |
| Dg76 | 76*76*2.6 | 1930 | 70.9 | 3 | 92 | 94 | |
| Note: The above data are reference to material PP | |||||||
DESCRIPTION:
1) Made of PE, PP, PVC, PVDF, CPVC
2) Plastic packing has the advantages of high void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer
3) These various plastic tower packing are widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrate.
PLASTIC SADDLES:
SPECIFICATIONS:
| Specification D x H x S(mm) | Surface Area m 2 /m 3 | Free volume % | Bulk Density Kg/m 3 | Numbers Per m 3 |
| Dia.25 x 13 x 1.2 | 288 | 85 | 102 | 97680 |
| Dia.38 x 19 x 1.4 | 265 | 95 | 65 | 22500 |
| Dia.50 x 25 x 1.5 | 250 | 96 | 66 | 9400 |
| Dia.76 x 38 x 3.0 | 200 | 97 | 60 | 3700 |
DESCRIPTION:
1) Made of PE, PP, PVC, PVDF, CPVC
2) Plastic packing has the advantages of high void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer
3) These various plastic tower packing are widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrate.
PLASTIC SUPER SADDLES:
DESCRIPTION:
1) Made of PE, PP, PVC, PVDF, CPVC
2) Plastic packing has the advantages of high void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer.
3) These various plastic tower packing are widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrate.
SPECIFICATIONS:
| Physical & Chemical properties | |||||||
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF | |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 | |
| Operation Temp. (Centigrade) | 90 | >100 | >120 | >60 | >90 | >150 | |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good | |
| Compression Strength (Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 | |
| Technical data | |||||||
| Spec. D x H x S (mm) | Surface area (m 2 /m 3 ) | Free volume (%) | Bulk density (kg/m 3 ) | Number per m 3 | |||
| Dia.38 x 19 x 1.4 | 178 | 96 | 75 | 25200 | |||
| Dia.50 x 25 x 1.5 | 168 | 97 | 68 | 9400 | |||
| Dia.76 x 38 x 3.0 | 130 | 98.0 | 52 | 3700 | |||
| Note: The above data are reference to material PP | |||||||
PLASTIC HELIX RINGS
DESCRIPTION:
1) Made of PE, PP, PVC, PVDF, CPVC;
2) Plastic packing has the advantages of high void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer;
3) These various plastic tower packing are widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrate.
SPECIFICATIONS:
| Sizes (mm) |
Surface (m 2 /m 3 ) |
Free Vol. (%) |
Number (per m 3 ) |
Weight (kg/m 3 ) |
Sizes (mm) |
| 50*56 | 110 | 94 | 8000 | 64 | 50*56 |
| 76*76 | 92 | 96 | 3420 | 56 | 76*76 |
| 100*100 | 76 | 95 | 1850 | 51 | 100*100 |

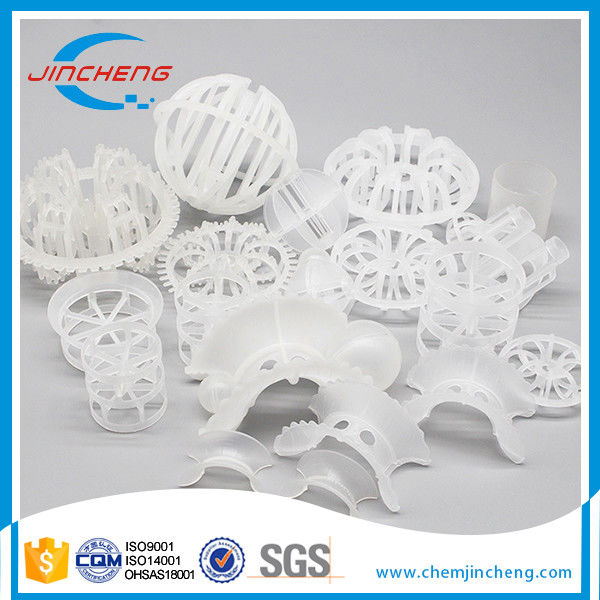

ACTURAL PRODUCTS AND PACKAGING:
