Product Details:
Payment & Shipping Terms:
|
| Shape: | Rosette Ring | Origin: | China |
|---|---|---|---|
| Material: | Plastic PP PE PVC CPVC PVDF | Type: | Raondom Packing |
| Package: | By Jumbo Bags, Each Bag Contain 1 M3, Wooden Pallet With Wrapped. | Size: | 25mm, 47mm, 51mm, 59mm, 73mm |
| HS Code: | 3926909090 | Application: | Improve The Wear Resistance |
| Classification: | Ring Form Filler | ||
| High Light: | random tower packing,tower packing material |
||

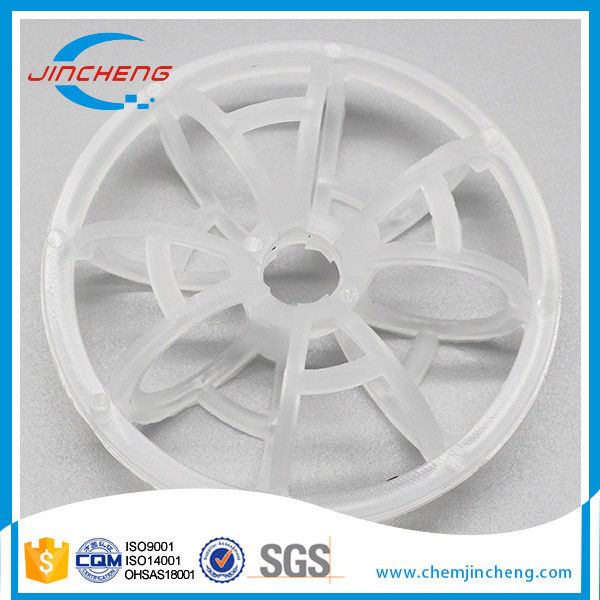

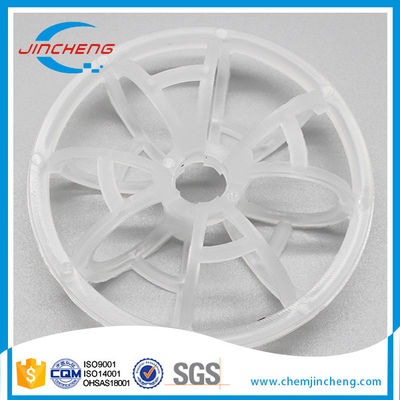

Polypropylene Rosette Ring Packing 25mm High Quality for Petroleum Industry
SPECIFICATIONS:
| Physical & Chemical properties | |||||||
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF | |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 | |
| Operation Temp. (Centigrade) | 90 | >100 | >120 | >60 | >90 | >150 | |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good | |
| Compression Strength (Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 | |
| Technical data | |||||||
| Spec. | D*H*T (mm) | Number per m 3 | Bulk density (kg/m 3 ) | Surface area (m 2 /m 3 ) | Free volume (%) | ||
| Dg25 (5-ring) | 25*9*(1.5*2) | 170000 | 90 | 195 | 82 | ||
| Dg47 (9-ring) | 47*19*(3*3) | 32500 | 111 | 185 | 88 | ||
| Dg51 (9-ring) | 21*19*(3*3) | 23500 | 103 | 180 | 98 | ||
| Dg59 (12-ring) | 59*19*(3*4) | 17500 | 72 | 150 | 92 | ||
| Dg73 (12-ring) | 73*28*(3*4) | 8000 | 80 | 127 | 89 | ||
| Dg95 (18-ring) | 95*37*(3*6) | 3900 | 78 | 94 | 90 | ||
| Dg145 (20-ring) | 145*48*(4*5) | 1100 | 48 | 65 | 95 | ||
| Note: The above data are reference to material PP | |||||||
DESCRIPTION:
1) Plastic packing has the advantages of high void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer
2) Made of PE, PP, PVC, PVDF, CPVC
3) These various plastic tower packing are widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrate.
PACKAGING:
By Plastic Jumbo Bag, each bag contain 1 m3, put on the wooden pallet with wrapped.
ACTURAL PACKING PICTURE:
