Product Details:
Payment & Shipping Terms:
|
| Shape: | Rosette Ring | Material: | Plastic PP |
|---|---|---|---|
| Type: | Raondom Packing | Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. |
| Size: | 25mm, 47mm, 51mm, 59mm, 73mm | HS Code: | 3926909090 |
| Classification: | Ring Form Filler | Application: | Improve The Wear Resistance |
| High Light: | plastic tower packing,random tower packing |
||

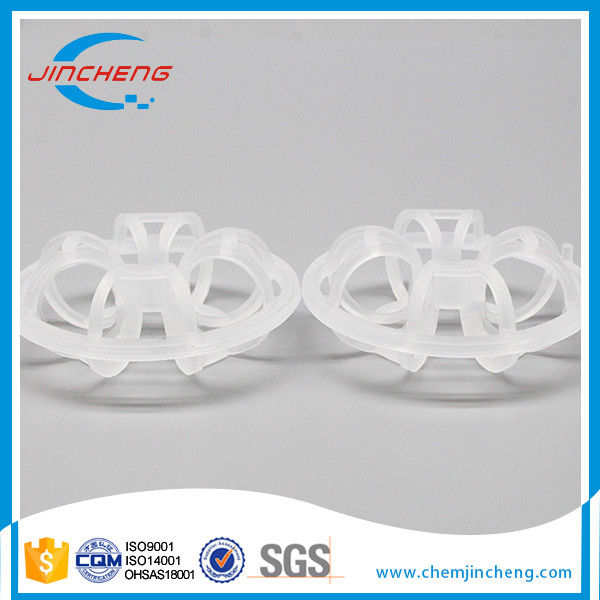

Plastic Rosette Ring for Chemical Packing 47mm 51mm Polypropylene
DESCRIPTION:
1) Made of PE, PP, PVC, PVDF, CPVC
2) Plastic packing has the advantages of high void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer
3) These various plastic tower packing are widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrate.
SPECIFICATIONS:
| Physical & Chemical properties | |||||||
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF | |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 | |
| Operation Temp. (Centigrade) | 90 | >100 | >120 | >60 | >90 | >150 | |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good | |
| Compression Strength (Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 | |
| Technical data | |||||||
| Spec. | D*H*T (mm) | Number per m 3 | Bulk density (kg/m 3 ) | Surface area (m 2 /m 3 ) | Free volume (%) | ||
| Dg25 (5-ring) | 25*9*(1.5*2) | 170000 | 90 | 195 | 82 | ||
| Dg47 (9-ring) | 47*19*(3*3) | 32500 | 111 | 185 | 88 | ||
| Dg51 (9-ring) | 21*19*(3*3) | 23500 | 103 | 180 | 98 | ||
| Dg59 (12-ring) | 59*19*(3*4) | 17500 | 72 | 150 | 92 | ||
| Dg73 (12-ring) | 73*28*(3*4) | 8000 | 80 | 127 | 89 | ||
| Dg95 (18-ring) | 95*37*(3*6) | 3900 | 78 | 94 | 90 | ||
| Dg145 (20-ring) | 145*48*(4*5) | 1100 | 48 | 65 | 95 | ||
| Note: The above data are reference to material PP | |||||||
