Product Details:
Payment & Shipping Terms:
|
| Type: | Raondom Packing | Size: | 16mm, 25mm, 38mm, 50mm, 76mm |
|---|---|---|---|
| National Standard: | HG/T 21556.3-1995 | Number(per M3): | 1930-171000 |
| Free Volume: | 99% | Shape: | Pall Ring |
| Surface Area: | 175 M2/m3 | Application: | Adsorption, Scrubbing And Stripping And So On |
| Sample:: | Free Sample | Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. |
| HS Code: | 3926909090 | Material: | Plastic PP |
| Bulk Density: | 70.9-141 | Color: | White Plastic Pall Ring |
| Classification: | Ring Form Filler | ||
| High Light: | PVC Tower Packing Pall Ring,38mm Tower Packing Pall Ring,Scrubbing Stripping Tower Pall Ring |
||
25mm 38mm Cooling Tower Packing PP PVC PE Plastic Pall Ring Scrubbing Stripping Tower

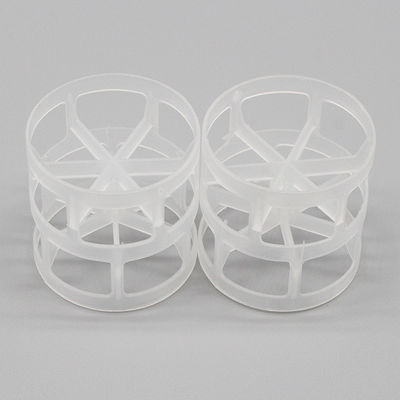

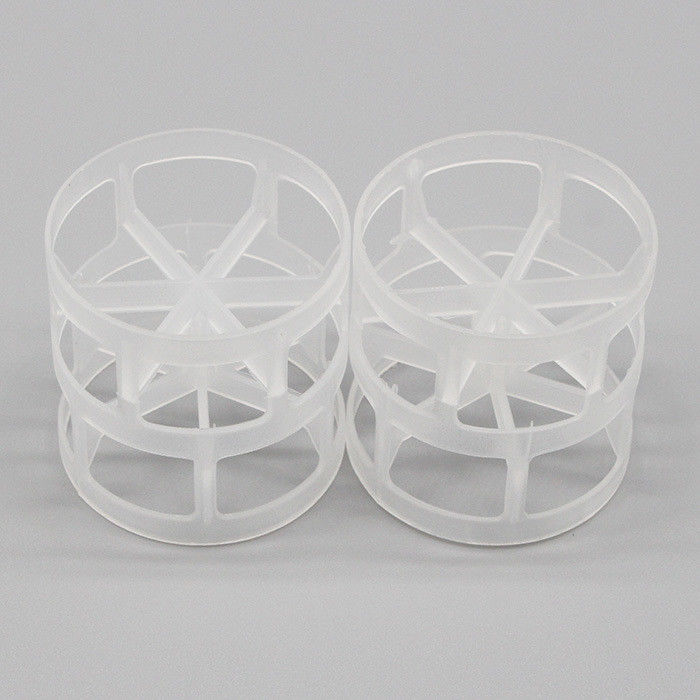

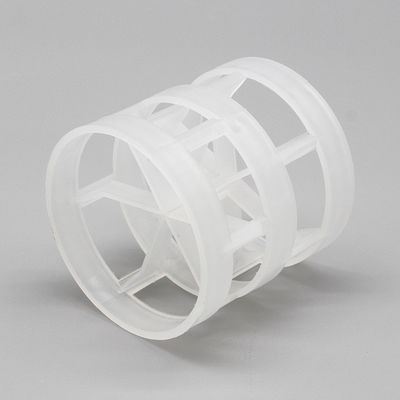

Plastic Pall Ring, is designed based on the Plastic Raschig Ring.
It has similar cylindrical dimensions but has two rows of punched out holes.
The structure improve distribution of gas-liquid and its efficiency can be improved above 50%, and only has half of pressure drop compared with Raschig Ring.
"Packing-mall" plastic Pall Ring, is made form heat resistant and chemical corrosion resistant plastics.
It has features such as high free volume, low pressure drop, low mass-transfer unit height,
high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60℃ to 150℃.
Material:
PP, RPP, PE, PVC, CPVC, PVDF, etc.
Typical Application:
Be widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.
SPECIFICATIONS:
| Physical & Chemical properties | |||||||
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF | |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 | |
| Operation Temp. (Centigrade) | 90 | >100 | >120 | >60 | >90 | >150 | |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good | |
| Compression Strength (Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 | |
| Technical data | |||||||
| Spec. | D*H*T (mm) | Number per m 3 | Bulk density (kg/m 3 ) | Surface area (m 2 /m 3 ) | Free volume (%) | F factor (m-1) | |
| Dg16 | 16*16*1.1 | 112000 | 141 | 188 | 91 | 249 | |
| Dg25 | 25*25*1.2 | 53500 | 150 | 175 | 90 | 239 | |
| Dg38 | 38*38*1.4 | 15800 | 98.0 | 115 | 89 | 220 | |
| Dg50 | 50*50*1.5 | 6500 | 74.8 | 112 | 90 | 154 | |
| Dg76 | 76*76*2.6 | 1930 | 70.9 | 3 | 92 | 94 | |
| Note: The above data are reference to material PP |
|||||||
