| Shape: | Saddles | Material: | SS304 |
|---|---|---|---|
| Type: | Raondom Packing | Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. |
| Size: | 16mm, 25mm, 38mm, 50mm | HS Code: | 8419909000 |
| Classification: | Saddles Filler | Application: | Improve The Wear Resistance |
| Highlight: | metal tower packing,random tower packing |
||

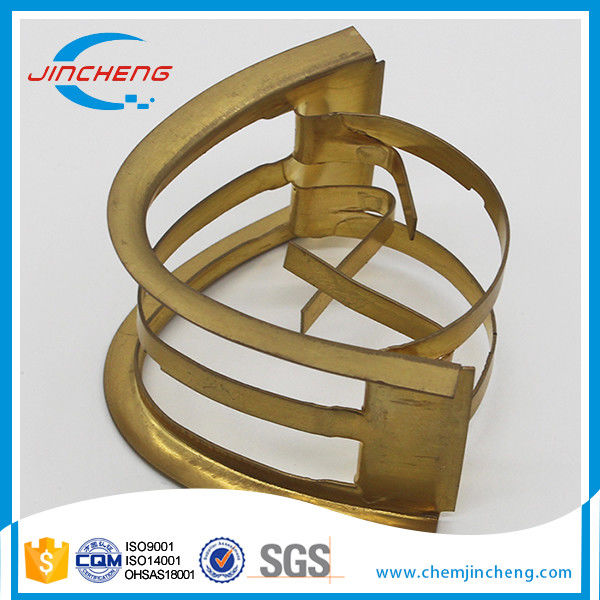

Stainless Steel SS316 Metal Intalox Saddles for Scrubbing Tower
DESCRIPTION:
Metal Saddles has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.
It is made of materials like carbon steel, stainless steel or Aluminum alloy, etc.
Jingcheng Metal Saddles are the equivalent to Intalox Metal Tower Packing.
ADVANTAGE:
A versatile packing used in distillation, absorption and other operations.
Used in both deep vacuum and high pressure towers.
Jincheng metal saddle is high performance random packing successfully used in mass transfer towers both small and large diameter. It is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays.
SPECIFICATIONS:
| Size (mm) |
Thickness (mm) |
Bulk density ( kg/m 3 ) |
Number (per m 3 ) |
Free volume ( % ) |
Surface Area (m 2 /m 3 ) |
Packing Factor (m -1 ) |
| 15 | 0.25 | 280 | 347000 | 96.5 | 305 | 167 |
| 25 | 0.3 | 255 | 135000 | 96.8 | 241 | 135 |
| 40 | 0.4 | 231 | 50200 | 97.1 | 161 | 79 |
| 50 | 0.4 | 149 | 15000 | 98.1 | 104 | 59 |
| 60 | 0.4 | 142 | 8400 | 98.2 | 85 | 50 |
| 70 | 0.5 | 113 | 4600 | 98.6 | 62 | 39 |
FACTORY DISPLAY:
