Product Details:
Payment & Shipping Terms:
|
| Shape: | Super Saddles | Material: | Plastic CPVC |
|---|---|---|---|
| Type: | Raondom Packing | Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. |
| HS Code: | 3926909090 | Classification: | Ring Form Filler |
| Size: | 25mm, 38mm, 50mm, 76mm | Application: | Improve The Wear Resistance |
| Origin: | China | ||
| High Light: | plastic tower packing,tower packing material |
||

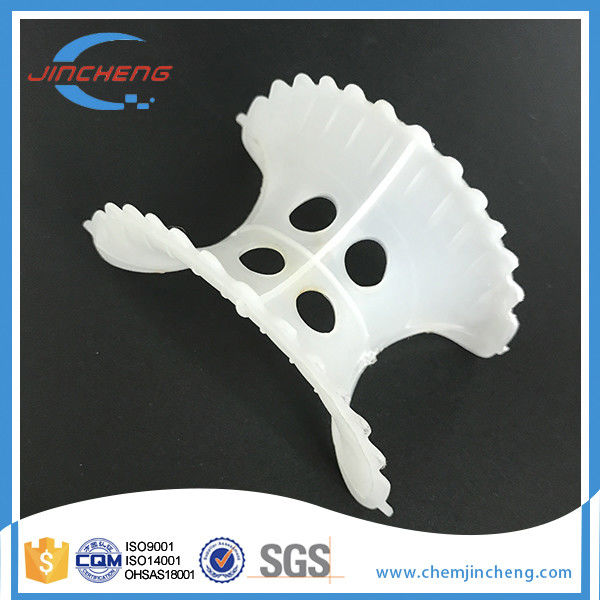

PVDF Intalox Super Saddles Packing with Excellent Acid Resistance 25MM
FEATURES:
1) Made of PE, PP, PVC, PVDF, CPVC
2) Plastic packing has the advantages of high void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer
3) These various plastic tower packing are widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrate.
PACKING:
By Jumbo Bag, each bag contain 1 m3, wooden pallet with wrapped.
SPECIFICATIONS:
| Specification D x H x S(mm) | Surface Area m 2 /m 3 | Free volume % | Bulk Density Kg/m 3 | Numbers Per m 3 |
| Dia.25 x 13 x 1.2 | 288 | 85 | 102 | 97680 |
| Dia.38 x 19 x 1.4 | 265 | 95 | 65 | 22500 |
| Dia.50 x 25 x 1.5 | 250 | 96 | 66 | 9400 |
| Dia.76 x 38 x 3.0 | 200 | 97 | 60 | 3700 |
ACTURAL PRODUCTS AND PACKAGING:
