Product Details:
Payment & Shipping Terms:
|
| Classification: | Ring Form Filler | Surface Area: | 175 M2/m3 |
|---|---|---|---|
| Bulk Density: | 150 Kg/m3 | Color: | White Plastic Pall Ring |
| Application: | Improve The Wear Resistance | Size: | 16mm, 25mm, 38mm, 50mm, 76mm |
| Free Volume: | 99% | Shape: | Pall Ring |
| Material: | Plastic PP | Type: | Raondom Packing |
| Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. | HS Code: | 3926909090 |
| High Light: | Tower Packing PP Pall Ring,Random Packing PP Pall Ring,Random Column Media Pall Ring |
||

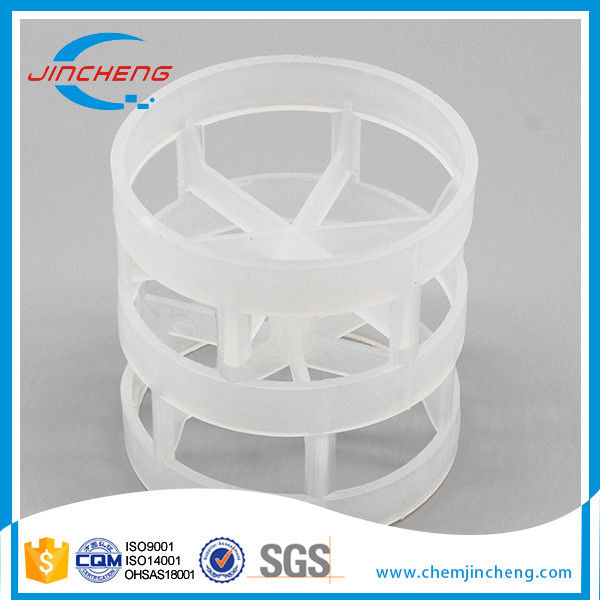

38mm 50mm Plastic Packing PP Pall Ring for Tower Packing Random Column Media
DESCRIPTION:
1) Made of PE, PP, PVC, PVDF, CPVC
2) Plastic packing has the advantages of high void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer
3) These various plastic tower packing are widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrate.
SPECIFICATIONS:
| Physical & Chemical properties | |||||||
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF | |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 | |
| Operation Temp. (Centigrade) | 90 | >100 | >120 | >60 | >90 | >150 | |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good | |
| Compression Strength (Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 | |
| Technical data | |||||||
| Spec. | D*H*T (mm) | Number per m 3 | Bulk density (kg/m 3 ) | Surface area (m 2 /m 3 ) | Free volume (%) | F factor (m-1) | |
| Dg16 | 16*16*1.1 | 112000 | 141 | 188 | 91 | 249 | |
| Dg25 | 25*25*1.2 | 53500 | 150 | 175 | 90 | 239 | |
| Dg38 | 38*38*1.4 | 15800 | 98.0 | 115 | 89 | 220 | |
| Dg50 | 50*50*1.5 | 6500 | 74.8 | 112 | 90 | 154 | |
| Dg76 | 76*76*2.6 | 1930 | 70.9 | 3 | 92 | 94 | |
| Note: The above data are reference to material PP |
|||||||
OTHER TYPES OF PLASTIC RANDOM PACKING:
