| Shape: | Pall Rings | Material: | Ceramic |
|---|---|---|---|
| Application: | Improve The Wear Resistance | Size: | 25mm, 38mm, 50mm, 80mm |
| Type: | Raondom Packing | Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. |
| HS Code: | 6909190000 | Origin: | China |
| Classification: | Ring Form Filler | ||
| High Light: | random tower packing,tower packing media |
||

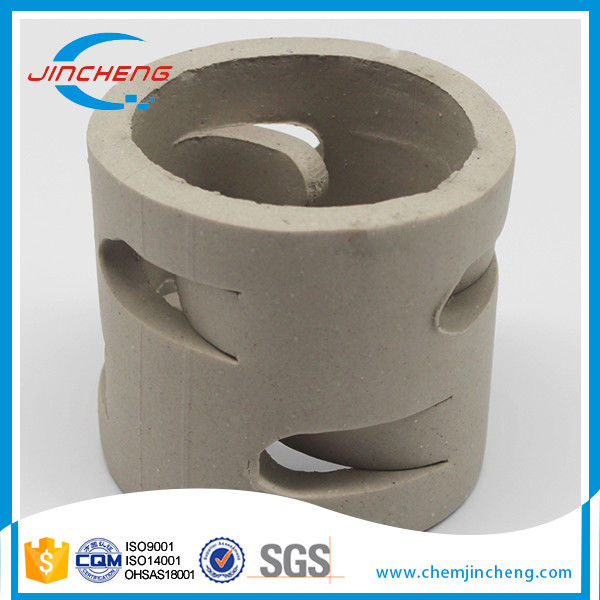

Ceramic Pall Ring with Acid-Resistance 25mm 50mm Scrubbing Tower Packing
SPECIFICATIONS:
| Sizes (mm) |
Thickness (mm) |
Surface area (m 2 /m 3 ) |
Free volume (%) |
Number per m 3 |
Bulk density (kg/m 3 ) |
| 25 | 3 | 210 | 73 | 53000 | 580 |
| 38 | 4 | 180 | 75 | 13000 | 570 |
| 50 | 5 | 130 | 78 | 6300 | 540 |
| 80 | 8 | 110 | 81 | 1900 | 530 |
DESCRIPTION:
Ceramic Pall Ring has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. The packing can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
WARRANTY:
a) By National Standard HG/T 21556.3-1995.
b) Offer lifetime consultation on problems occurred.
