Product Details:
Payment & Shipping Terms:
|
| Shape: | Pall Rings | Material: | SS304 304L 316 316L 410, SS304 316L 321 |
|---|---|---|---|
| Type: | Raondom Packing | Package: | Super Sack |
| Size: | 15mm 25mm 38mm 50mm 76mm Metal Pall Ring | HS Code: | 8419909000 |
| Application: | Scrubber Tower | ||
| High Light: | 304 Stainless Steel Pall Ring,50mm Metal Pall Ring,Random Packing Metal Pall Ring |
||

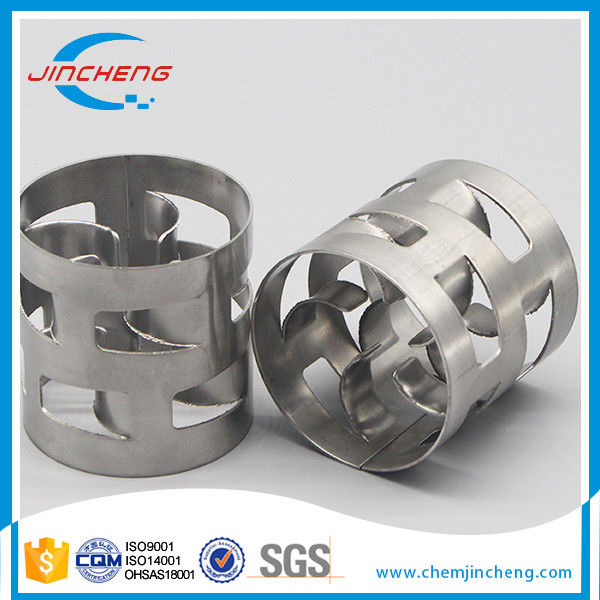

Stainless Steel SS304 50mm Metal Pall Ring for Petrochemical Industry
Pall ring is made of materials like carbon steel, stainless steel or Aluminum alloy, etc. The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc...
Material available:
carbon steel, stainless steel including 304, 304L, 410,316, 316L.
The above data is reference to material stainless steel (AISI304) in the material thickness shown. Other wall thicknesses are available on request.
Technical data:
| Model | Pall Ring | ||||||
| Material | Carbon Steel; SS 304, 304L, 410, 316, 316L, etc. | ||||||
| Preferred Sizes | (mm) | 16*16*0.3 | 25*25*0.3 | 38*38*0.4 | 50*50*0.5 | 76*76*0.6 | 89*89*0.7 |
| Bulk density | (kg/m3) | 345 | 214 | 193 | 182 | 142 | 145 |
| Number | (per m3) | 201000 | 51000 | 15000 | 6500 | 1830 | 1160 |
| Surface area | (m2/m3) | 346 | 212 | 145 | 106 | 69 | 62 |
| Free volume | (%) | 95.5 | 96.2 | 96.7 | 97.5 | 97.4 | 97.1 |
| Typical Application | Absorption, scrubbing and stripping services | ||||||
ACTURAL PACKAGING:
