| Shape: | Saddles | Material: | Stoneware Ceramic |
|---|---|---|---|
| Type: | Raondom Packing | Package: | By Plastic Jumbo Bag, Each Bag 1 M3, Then Put On The Wooden Pallet With Wrapped. |
| Classification: | Ring Form Filler | Size: | 13mm, 25mm, 38mm, 50mm |
| Origin: | China | HS Code: | 6909190000 |
| Application: | Improve The Wear Resistance | ||
| High Light: | ceramic tower packing,tower packing media |
||

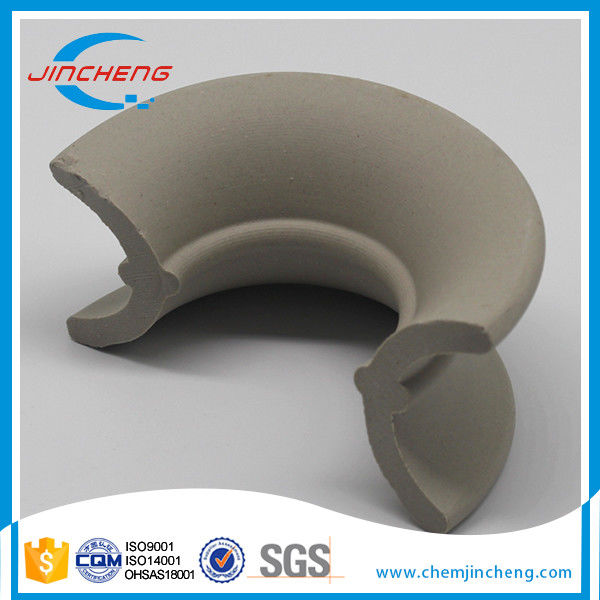

Ceramic Saddles 25mm 38mm 50mm with High Acid Resistance for Refinery Tower
DESCRIPTION:
Ceramic Saddles are used in two main fields but have different properties depending on their application. The first field is the chemical and petrochemical industries and the second is in environmental areas such as RTO equipment. The first saddle is for chemical and petrochemical.
SPECIFICATIONS:
| Nominal size(inch) | 3/8" | 1/2" | 5/8'" | 3/4" | 1" | 1-1/2" | 2" | 3" |
| Width(mm) | 8 | 10 | 12 | 14 | 21 | 30 | 40 | 57 |
| Height(mm) | 8 | 10 | 12 | 14 | 19 | 30 | 40 | 57 |
| Length(mm) | 16 | 20 | 24 | 28 | 38 | 60 | 80 | 114 |
| Thickness(mm) | 2 | 2.5 | 2.5 | 3 | 4 | 4.5 | 5.5 | 9 |
| Number per m 3 | 1560000 | 610000 | 269000 | 146000 | 59000 | 19680 | 8243 | 2400 |
| Package density (kg/m 3 ) | 900 | 780 | 700 | 670 | 650 | 580 | 550 | 530 |
| Free volume (%) | 63 | 68 | 71 | 75 | 77 | 80 | 79 | 75 |
| Surface area (m 2 /m 3 ) | 825 | 647 | 535 | 350 | 254 | 180 | 120 | 91 |
| Specific gravity (g/cm 3 ) | 2.25~2.35 | |||||||
| Water absorption (%) | <0.3 | |||||||
| Acid resistance (%) | >99.6 | |||||||
| Max operating temp. | 1100Centigrade | |||||||
| Porosity (%) | <1 | |||||||
| Moh'shardness (scale) | >6.5 | |||||||
| Thermal conductivity(w/m.k) | 0.9-1.0 | |||||||
| Specific heat (j/kg Centigrade) | 850-900 | |||||||
TYPICAL APPLICATION:
a) Have excellent acid resistance and heat resistance.
b) It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid.
c) Used in high or low temperature conditions.
d) Used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
ADVANTAGES:
These saddles are made from chemical porcelain and have excellent resistance to acids except in the case of hydrofluoric acid.
Moisture absorption must less than half a percent.
The porcelain's specific gravity is 2.3-2.4g/cm3 and an average heat capacity (between 20Centigrade and 500Centigrade of 0.22 cal/g Centigrade.
Jincheng ceramic saddles softening point is 1400Centigrade min. And they show good thermal shock resistance during repeated cycling between 20Centigrade and 820Centigrade.
ACTURAL PRODUCTS AND PACKAGING:
