Product Details:
Payment & Shipping Terms:
|
| Shape: | Pall Rings | Material: | SS304 |
|---|---|---|---|
| Type: | Raondom Packing | Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. |
| Size: | 16mm, 25mm, 38mm, 50mm | Application: | Improve The Wear Resistance |
| HS Code: | 8419909000 | Classification: | Ring Form Filler |
| Origin: | China | ||
| High Light: | metal tower packing,random tower packing |
||

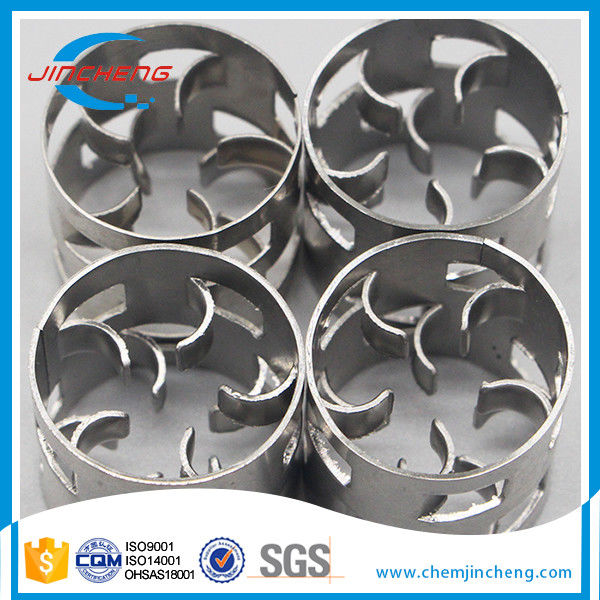

SS304 Metal Stainless Steel Pall Ring Random Tower Packing for Cooling Tower
DESCRIPTION:
Metal Pall Ring has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.
MATERIALS:
It is made of materials like carbon steel, stainless steel or Aluminum alloy, etc.
PACKAGING:
By Jumbo Bag, each bag contain 1 m3, wooden pallet with wrapped.
SPECIFICATIONS:
| Technical data | ||||
| Sizes (mm) | Bulk density (kg/m3) | Number (per m3) | Surface area (m2/m3) | Free volume (%) |
| 16*16*0.3 | 360 | 201000 | 346 | 95.5 |
| 25*25*0.4 | 302 | 51000 | 212 | 96.2 |
| 25*25*0.5 | 400 | 51000 | 216 | 95 |
| 25*25*0.6 | 461 | 51000 | 219 | 94.2 |
| 38*38*0.4 | 218 | 15000 | 143 | 97.2 |
| 38*38*0.5 | 262 | 15180 | 145 | 96.7 |
| 38*38*0.6 | 328 | 15000 | 146 | 95.9 |
| 50*50*0.5 | 194 | 6500 | 106 | 97.5 |
| 50*50*0.7 | 285 | 6500 | 108 | 96.4 |
| 50*50*0.9 | 365 | 6500 | 109 | 95.4 |
| 76*76*0.8 | 205 | 1830 | 69 | 97.4 |
| 90*90*1.0 | 229 | 1160 | 62 | 97.1 |
ACTURAL PACKAGING:
