| CAS No.: | 63231-69-6 | Packaging: | 25kgs/Carton Box, Or 150kgs/Steel Drum |
|---|---|---|---|
| Shape: | Pellet | Drying Type: | Dynamic Drying |
| Size: | Beads 1.7-2.5mm, 3-5mm, Pellet 1.6mm 3.2mm | Adsorber: | Molecular Sieve |
| High Light: | Zeolite 3A Molecular Sieve Pellet,2.5mm Sphere Molecular Sieve Pellet,Unsaturated Hydrocarbons Molecular Sieve Beads |
||

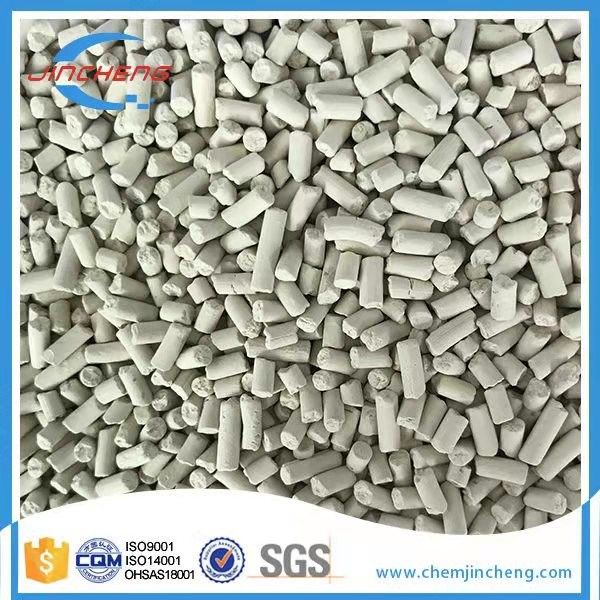

High Adsorption Rate Pellet Shape Zeolite 3A Molecular Sieve For Methonal Drying
Typical Chemical Formula:
0.45 K2O . 0.55 Na2O . Al2O3 . 2 SiO2 . 4.5H2O
SiO2 : Al2O3 ≈2
DESCRIPTION:
JINCHENG Molecular Sieve type 3A is an alkali metal alumino-silicate; it is thepotassium form of the type A crystal structure. Type 3A has an effective pore opening of about 3 angstroms (0.3nm). This is large enough to allow in moisture, but excludes molecules such as unsaturated hydrocarbons which can potentially form polymers.
PACKAGING:
25kg/box or 150kg/drum
TYPICAL APPLICATION:
1) Drying of unsaturated hydrocarbons (e. G. Ethylene, propylene, butadien);natural gas, if COS minimization is essential, or a minimum co-adsorption of hydrocarbons is required; highly polar compounds, such as methanol and ethanol; liquid alcohol;refrigerants.
2) Cracked Gas Drying
3) Static, (non-regenerative) dehydration of insulating glass units, whether air filled or gas-filled.
SIZE:
3A - Zeolites are available in beads of 1-2 mm, (10x18 mesh) 2-3 mm, (8x12 mesh), 2.5-5 mm, (4x8 mesh) and as powder, and in pellet 1.6", 3.2".
ATTENTION:
To avoid damp and pre-adsorption of organic before running, or must to be reactivated.
SPECIFICATIONS:
| Item | Unit | Technical data | |||
Shape |
Pellet | Sphere | |||
Diameter |
mm |
1.5-1.7 |
3.0-3.3 |
1.7-2.5 |
3.0-5.0 |
Size ratio up to grade |
% |
≥98 |
≥98 |
≥96 |
≥96 |
Bulk density |
g/ml |
≥0.68 |
≥0.68 |
≥0.68 |
≥0.68 |
Wear ratio |
% |
≤0.20 |
≤0.25 |
≤0.10 |
≤0.10 |
Crushing strength |
N |
≥45/cm |
≥60/cm |
≥30/piece |
≥70/piece |
Static water adsorption |
% |
≥20 |
≥20 |
≥20 |
≥20 |
Ethylene adsorption |
% |
≤3.0 |
≤3.0 |
≤3.0 |
≤3.0 |
Water content, as shipped |
% |
≤1.5 |
≤1.5 |
≤1.5 |
≤1.5 |
