Product Details:
Payment & Shipping Terms:
|
| Usage: | Coating Auxiliary Agents, Electronics Chemicals, Leather Auxiliary | CAS No.: | 1318-02-1 |
|---|---|---|---|
| Static H2O Adsorption: | >21.5% | Purity: | 99% Min |
| Shape: | Beads | Package: | 25kgs/Carton Box, Or 150kgs/Steel Drum |
| Size: | 1.7-2.5mm, 3-5mm Pellet 1.6mm 3.2mm | Dring: | Static Drying |
| Place Of Origin: | Jiangxi, China | Adsorber: | Molecular Sieve |
| MF: | Na2O.Al2O3.2SiO2.4.5H2O | Color: | Light Grey 4A Molecular Sieves Balls |
| High Light: | Static Drying Molecular Sieve Dehydration,4A Molecular Sieve Dehydration,CAS 1318-02-1 |
||

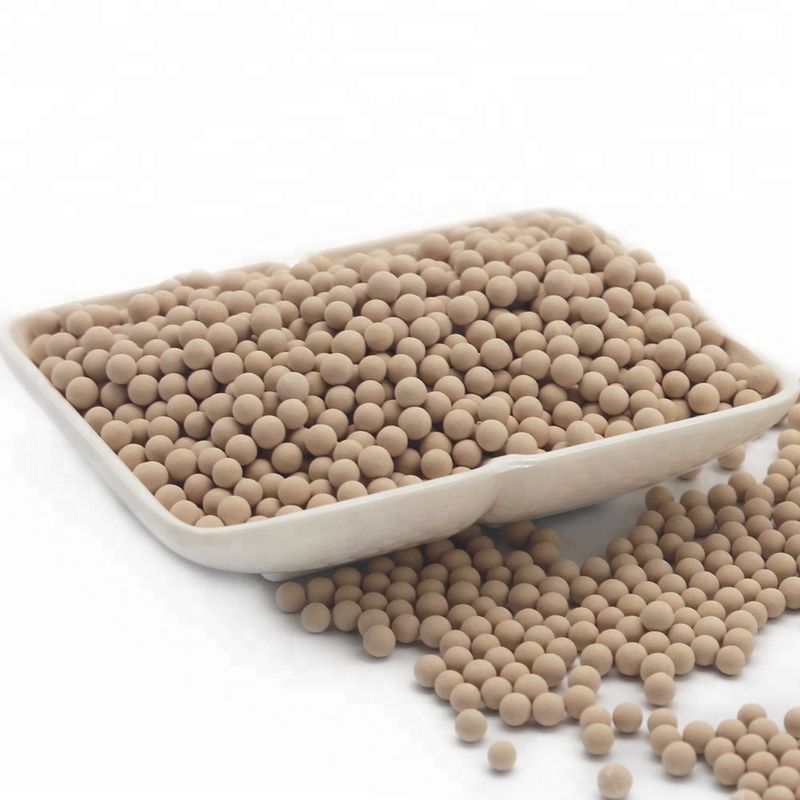

Zeolite Pellet Adsorption 4A Molecular Sieve Dehydration CAS No. 1318-02-1
DESCRIPTION:
Molecular Sieve 4A is an alkali alumino silicate; It is the sodium form of the Type A crystal structure. 4A molecular sieve has an effective pore opening of about 4 angstroms (0.4nm). Our type 4A molecular sieve will adsorb most molecules with a kinetic diameter of less than 4 angstroms and exclude those larger. Such adsorbable molecules include simple gas molecules such as oxygen, nitrogen, carbon dioxyde and straight chain hydrocarbons. Branched chain hydrocarbons and aromatics are excluded.
TYPICAL CHEMICAL FORMULA:
Na2O. Al2O3.2SiO2.4.5 H2O
SiO2: Al2O3 ≈ 2
SPECIFICATIONS:
| Item | Unit | Technical data | |||
Shape |
Pellet | Sphere | |||
Diameter |
mm |
1.5-1.7 |
3.0-3.3 |
1.7-2.5 |
3.0-5.0 |
Size ratio up to grade |
% |
≥98 |
≥98 |
≥96 |
≥96 |
Bulk density |
g/ml |
≥0.68 |
≥0.68 |
≥0.68 |
≥0.68 |
Wear ratio |
% |
≤0.20 |
≤0.40 |
≤0.20 |
≤0.20 |
Crushing strength |
N |
≥30/cm |
≥45/cm |
≥30/piece |
≥70/piece |
Static water adsorption |
% |
≥20.5 |
≥20.5 |
≥21 |
≥21 |
Static methanol adsorption |
% |
≥15 |
≥15 |
≥15 |
≥15 |
Water content, as shipped |
% |
≤1.5 |
≤1.5 |
≤1.5 |
≤1.5 |
REGENERATION:
JINCHENG molecular sieve Type 4A can be regenerated by either heating in the case of thermal swing processes; Or by lowering the pressure in the case of pressure swing processes.
To remove moisture from a 4A molecular sieve, a temperature of 250-280° C is required. A properly regenerated molecular sieve can give moisture dew points below -100° C.
The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process
APPLICATION:
1) Removal of hydrocarbons, ammonia and methanol from gas streams
(ammonia syn gas treating)
2) For CO2 Drying and Removing from the natural gas, LPG, air, inert and athmospheric gases, etc.
3) Special types are used in the air break units of buses, trucks and locomotives.
4) Packed in small bags, it may be used simply as a packaging desiccant.
ATTENTION:
To avoid damp and pre-adsorption of organic before running, or must to be reactivated.
SIZE:
4A - Zeolites are available in beads of 1-2 mm, (10x18 mesh) 2-3 mm, (8x12 mesh), 2.5-5 mm, (4x8 mesh) and as powder, and in pellet 1.6, 3.2.
TYPES OF MOLECULAR SIEVE:
ACTURAL PRODUCTION:
