Product Details:
Payment & Shipping Terms:
|
| Shape: | Spheres | Material: | Polypropylene |
|---|---|---|---|
| Package: | 10000pcs/Plastic Bag, Wooden Pallet With Wrapped. | Color: | White Brown Blue Red Ect |
| Type: | Cosmetic Packaging | Size: | 6mm-150mm |
| HS Code: | 3926909090 | Classification: | Floating Ball Filler |
| Origin: | China | Processing Service: | Moulding |
| High Light: | 50mm Hollow Plastic Balls,Spheres Hollow Plastic Balls,50mm PP Hollow Spheres |
||

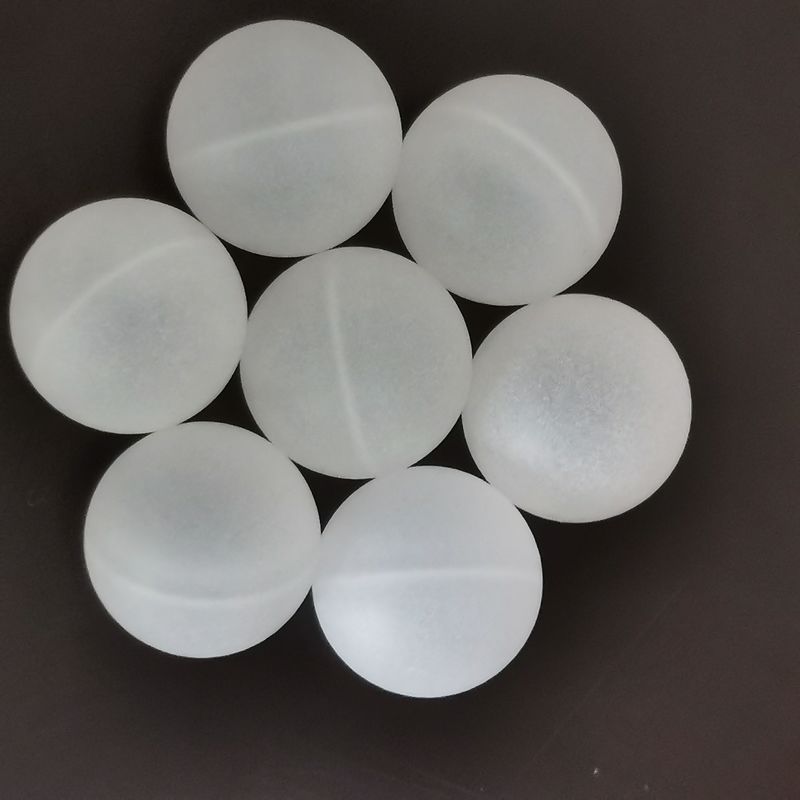

38mm 45mm 50mm Large White PP Hollow Plastic balls for Chemical Industry
DESCRIPTION:
PP Ball Feature:
1) Made of Polypropylene
2) Plastic packing has the advantages of high void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer
3) These various plastic tower packing are widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrate.
FEATURES:
Has good resistance, chemical resistance, low density (density less than water), low water absorption, the highest melting point of the thermoplastic with excellent electrical insulator and low dielectric coefficient, often used for floating capacity requirements, withblood transfusion, level calibration indicator.
WARRANTY:
a) By National Standard HG/T 21556.3-1995.
b) Offer lifetime consultation on problems occurred.
SPECIFICATIONS:
| Physical & Chemical properties | |||||||
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF | |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 | |
| Operation Temp. (Centigrade) | 90 | > 100 | > 120 | > 60 | > 90 | > 150 | |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good | |
| Compression Strength (Mpa) | > 6.0 | > 6.5 | > 7.0 | > 6.0 | > 8.0 | > 10.0 | |
| Technical data | |||||||
| Spec. (mm) | Surface area (m 2 /m 3 ) | Free volume (%) | Bulk density (kg/m 3 ) | Number per m 3 | |||
| Dia. 10 *0.6 | 325 | 40 | 357 | 1190000 | |||
| Dia. 20 *0.8 | 250 | 40 | 158 | 144000 | |||
| Dia. 25 *1.0 | 200 | 40 | 125 | 74000 | |||
| Dia. 38 *1.2 | 150 | 40 | 121 | 21000 | |||
| Dia. 46 *1.2 | 135 | 40 | 105 | 12300 | |||
| Dia. 50 *1.5 | 120 | 40 | 73 | 10480 | |||
| Note: The above data are reference to material PP | |||||||
| Ball Diameter and Surface Coverage | |||||||
| Spec. (mm) | Average Weight (g) | Number per ft2 | Number per m2 | ||||
| Dia. 10 | 0.25 | 1076 | 11600 | ||||
| Dia. 19 | 1.0 | 270 | 2900 | ||||
| Dia. 25 | 1.5 | 172 | 1850 | ||||
| Dia. 38 | 4.5 | 74 | 800 | ||||
| Dia. 50 | 8.0 | 43 | 465 | ||||
APPLICATIONS:
