Product Details:
Payment & Shipping Terms:
|
| Shape: | Super Saddles | Material: | Ceramic |
|---|---|---|---|
| Type: | Raondom Packing | Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. |
| Size: | 13mm, 25mm, 38mm, 50mm | HS Code: | 6909190000 |
| Classification: | Saddles Form Filler | Application: | Improve The Wear Resistance |
| Origin: | China | ||
| High Light: | ceramic tower packing,random tower packing |
||

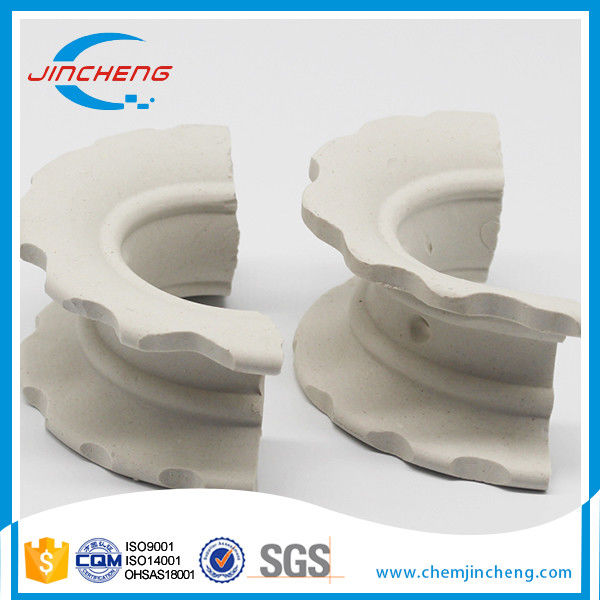

Ceramic Super Saddle for Chemical Industry with High Temperature Resistance
DESCRIPTION:
Ceramic Super Saddles are used in two main fields but have different properties depending on their application. The first field is the chemical and petrochemical industries and the second is in environmental areas such as RTO equipment. The first saddle is for chemical and petrochemical.
ADVANTAGES:
These saddles are made from chemical porcelain and have excellent resistance to acids except in the case of hydrofluoric acid.
Moisture absorption must less than half a percent.
The porcelain's specific gravity is 2.3-2.4g/cm3 and an average heat capacity (between 20Centigrade and 500Centigrade of 0.22 cal/g Centigrade.
Jincheng ceramic saddles softening point is 1400Centigrade min. And they show good thermal shock resistance during repeated cycling between 20Centigrade and 820Centigrade.
SPECIFICATIONS:
| Index | Unit | Value |
| Porosity | Vol% | 1 |
| Specific heat | KJ/Kg | 840-900 |
| Crush strength | N/mm 2 | 390-420 |
| Specific gravity | g/cm 3 | 2.3-2.45 |
| Acid Resistance | % | 99.98 |
| Firing temperature | Centigrade | 1280 to 1320 |
| Softening point | Centigrade | >1400 |
| Water absorption | % | <0.2 |
| Thermal Expansion | 10 -6 mm/mm Centigrade | 4.7 |
| Hardness | Mohr Scale | 7-8 |
| Comprehensive strength | Newtons | 5600 |
| Shock strength | Kgf.cm/cm 2 | 1.0-1.5 |
