Product Details:
Payment & Shipping Terms:
|
| Shape: | Cascade Mini Rings | Material: | Ceramic |
|---|---|---|---|
| Application: | Improve The Wear Resistance | Type: | Random Packing |
| Package: | By Jumbo Bag, Each Bag 1 M3, Wooden Pallet With Wrapped. | Origin: | China |
| Size: | 25mm, 50mm, 76mm | HS Code: | 6909190000 |
| Classification: | Ring Form Filler | ||
| High Light: | ceramic tower packing,random tower packing |
||

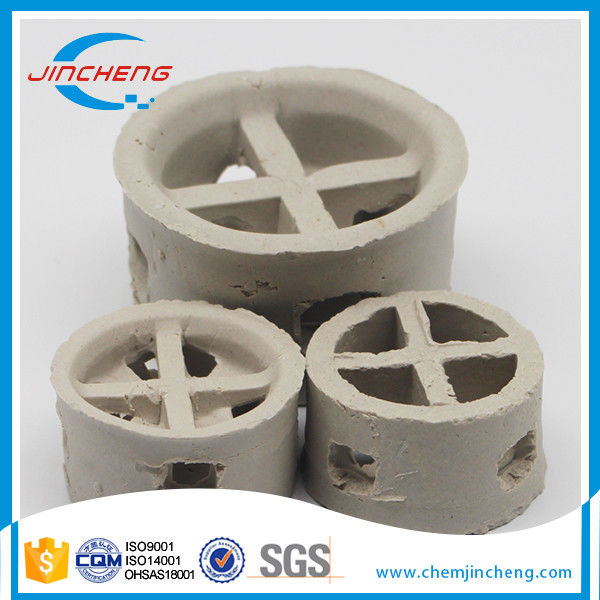

Ceramic Cascade Mini Ring for Cooling Tower Packing 25mm Random Packing
DESCRIPTION:
Ceramic Cascade Mini Ring has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. The packing can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
SPECIFICATIONS:
| Spec. | D*H*T (mm) | Surface area (m²/m³) | Free volume (%) | Number per m³ | Bulk density (Kg/m³) | Dry Packing Factor(m-1) |
| Ø 25 | 25*20*3 | 270 | 74 | 74000 | 624 | 172 |
| Ø 50 | 50*30*5 | 108.8 | 78.7 | 9091 | 516 | 223 |
| Ø 76 | 76*45*7 | 63.4 | 79.5 | 2517 | 426 | 126 |
PACKAGING:
Contact Person: Tracy Yao
Tel: 86-18665818108
