| Size: | 25mm, 38mm, 50mm, 76mm | Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. |
|---|---|---|---|
| Shape: | Plastic Polyhedral Hollow Balls | Material: | Plastic PP PE PVC CPVC |
| Application: | Improve The Wear Resistance | Type: | Raondom Packing |
| HS Code: | 3926909090 | Classification: | Floating Balls Filler |
| High Light: | random tower packing,tower packing material |
||

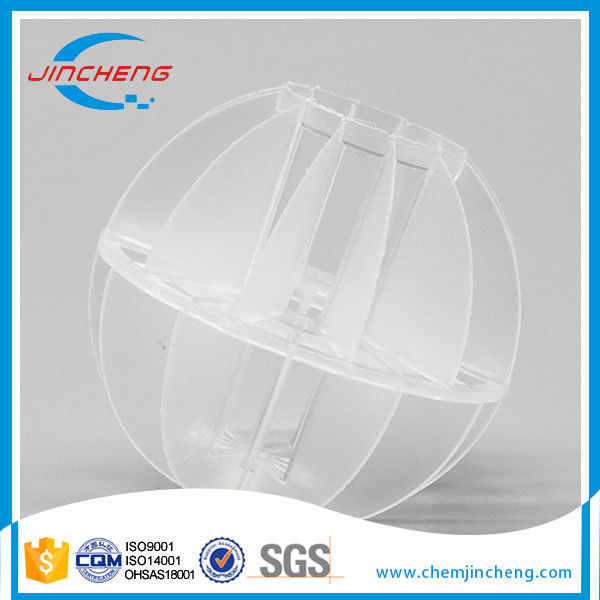

Polyhedral Hollow Ball Packing for Random Tower Packing 25mm Tellerette Packing
SPECIFICATIONS:
| Physical & Chemical properties | |||||||
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF | |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 | |
| Operation Temp. (Degree C) | 90 | >100 | >120 | >60 | >90 | >150 | |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good | |
| Compression Strength (Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 | |
| Technical data | |||||||
| Specification (mm) | Surface area (m 2 /m 3 ) | Free volume (%) | Bulk density (kg/m 3 ) | Number per m 3 | |||
| Dia.25 | 460 | 84 | 145 | 64000 | |||
| Dia.38 | 325 | 87 | 125 | 25000 | |||
| Dia.50 | 236 | 90 | 105 | 11500 | |||
| Dia.76 | 150 | 92 | 90 | 3000 |
|||
WARRANTY:
a) By National Standard HG/T 21556.3-1995
b) Offer lifetime consultation on problems occurred
DESCRIPTION:
Polyhedral Hollow Ball Packing is made from heat resistant and chemical corrosion resistant plastics, including polyethylene(PE), polypropylene(PP), reinforced polypropylene(RPP), polyvinyl chloride(PVC), chloridized polyvinyl chloride(CPVC) and polyvinylidene fluoride(PVDF).
It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60 to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.
