Product Details:
Payment & Shipping Terms:
|
| Shape: | Pall Ring | Material: | Plastic PP PE PVC CPVC PVDF |
|---|---|---|---|
| Type: | Raondom Tower Packing | Origin: | China |
| Application: | Improve The Wear Resistance | Size: | 16mm, 25mm, 38mm, 50mm, 76mm |
| Package: | By Super Sacks, Each Bag 1 M3, Wooden Pallet With Wrapped. | HS Code: | 3926909090 |
| Classification: | Ring Form Filler | ||
| High Light: | plastic tower packing,random tower packing |
||

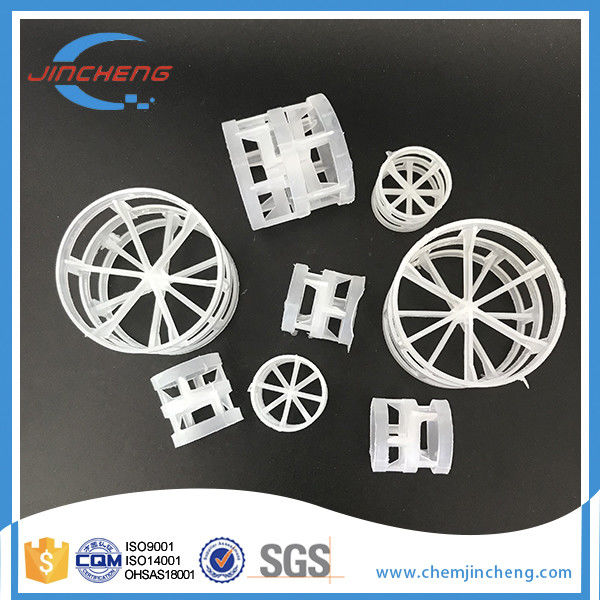

Polypropylene Pall Rings for Cooling Towers Random Packing 25mm 50mm
SPECIFICATIONS:
| Physical & Chemical properties | |||||||
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF | |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 | |
| Operation Temp. (Centigrade) | 90 | >100 | >120 | >60 | >90 | >150 | |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good | |
| Compression Strength (Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 | |
| Technical data | |||||||
| Spec. | D*H*T (mm) | Number per m 3 | Bulk density (kg/m 3 ) | Surface area (m 2 /m 3 ) | Free volume (%) | F factor (m-1) | |
| Dg16 | 16*16*1.1 | 112000 | 141 | 188 | 91 | 249 | |
| Dg25 | 25*25*1.2 | 53500 | 150 | 175 | 90 | 239 | |
| Dg38 | 38*38*1.4 | 15800 | 98.0 | 115 | 89 | 220 | |
| Dg50 | 50*50*1.5 | 6500 | 74.8 | 112 | 90 | 154 | |
| Dg76 | 76*76*2.6 | 1930 | 70.9 | 3 | 92 | 94 | |
| Note: The above data are reference to material PP | |||||||
DESCRIPTION:
1) These various plastic tower packing are widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrate.
2) Plastic packing has the advantages of high void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer
3) Made of PE, PP, PVC, PVDF, CPVC
WARRANTY:
a) By National Standard HG/T 21556.3-1995
b) Offer lifetime consultation on problems occurred
ACTURAL PACKAGING:
